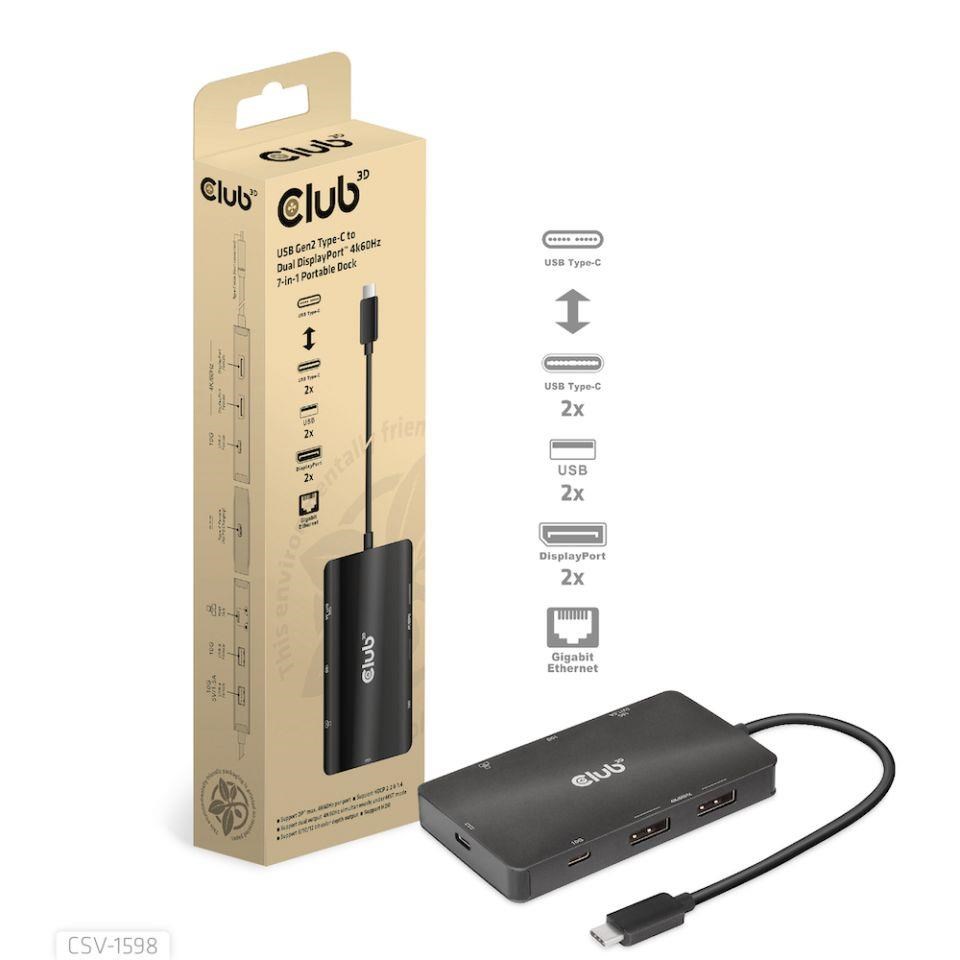

Club3D Dokovací stanice USB Gen2 Type-C na Dual DisplayPort 4k60Hz 7-in-1 Portable Dock

Name: Club3D Dokovací stanice USB Gen2 Type-C na Dual DisplayPort 4k60Hz 7-in-1 Portable Dock
Brand: Club 3D
SKU: 602506
Price: 2202.20 CZK
Availability: InStock

Part Nr.

CSV-1598

Kód zboží

1657297

Výrobce

Club 3D

EAN

8719214472528

Záruka

24 Měsíců

USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 Portable The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most

Dostupnost

Dostupnost na pobočkách

DPH

21%

Vaše cena s DPH

2 202 Kč

Vaše cena bez DPH

1 820 Kč bez DPH

Objednat

Hodnocení produktu

Hodnoceno 0x

Přidat k porovnání Porovnat

Poradit se: 244 402 102 ( Po - Pá: 9:00 - 18:00 )

Facebook Nastavit hlídacího psa

Popis a parametry

Popis produktu

USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 PortableThe Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host.
Support DP™1.4 Alt mode
Support DP™ max. 4K60Hz per port
Support dual output 4K60Hz simultaneously under MST mode
Support 8/10/12 bit color depth output
Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
Support HDR
Support HDCP 2.2 & 1.4
Max 10Gbps (Gen2) data transmission per USB port
Support max 7.5W(5V/1.5A) downstream charging for the USB Type-A port furthest from RJ45
Support Gigabit Ethernet,10M/100M/1000M
Support max 100W PD charging(15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge the host)
Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging in and out PD Adapter

TECHNICAL SPECIFICATIONS


 Input
- 1x USB Gen2 Type-C Male(Connect to host)
 Support DP™1.4 Alt mode
Note: To get max bandwidth, the host should support DP™1.4 Alt mode

 Output(s)
- 2x DisplayPort™ Female
 Support max. 4K60Hz
 - Support Dual display DP™ max.4K60Hz (MST with DSC1.2)
Note: The max resolution of the display determined by the computer and the monitor
- 1x USB Gen2 Type-C(next to DP™ ports) Female
 - Max 10Gbps data transmission
 - Support max 4.5W(5V/900mA) downstream charging
 - 2 USB Gen2 Type-A and the Type-C share max 2.4A output
 Support short-circuit, over-current, over-voltage protection
- 2x USB Gen2 Type-A Female
 Max 10Gbps data transmission per port
 1 port supports max 7.5W(5V/1.5A) downstream charging.
 1 port supports Max 4.5W(5V/900mA) charging
 Both USB Gen2 Type-A ports Support short-circuit, over-current, over-voltage protection
- 1x RJ45 Jack
 - Support Gigabit Ethernet,10M/100M/1000M
 - Support Wake-On-LAN
 - Support full duplex flow control
 - Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data
- 1x USB Gen2 Type-C Female (for PD Charger)
 Support max 100W PD3.0 charging
 Support Fast Role Swap, the connected device will not get disconnected while plugging in and out the PD charger. 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge the host

 OS Support
Microsoft and Apple

 In the box
 1x USB Gen2 Type-C to Dual DisplayPort™ 4k60Hz 7-in-1 Portable Dock

 Available Interfaces
Input:
- USB Gen2 Type-C Male (Connect to host)
Output:
- 2x DisplayPort™ Female
- 2x USB Gen2 Type-A Female
- 1x RJ45 jack
- 2x USB Gen2 Type-C Female
NOTE: Please make sure your host supports DP™1.4 Alt mode.

 Other info
- Box size: 25 x 8 x 3.5cm / 9.84 x 3.15 x 1.38"
- Cable length: 17 cm / 6.69"
- Total length: ± 31.6 cm / 12.44"
- Hub dimensions: 10.5 x 5.9 x 1.4 cm / 4.13 x 2.32 x 0.55"
- Connector dimensions: 3.4 x 1.2 x 0.65 cm / 0.86 x 0.47 x 0.26"
- Product Weight: 102 gr / 3.6 oz
- Box Weight: 54 gr / 1.9 oz
- Total Weight: 156 gr / 5.5 oz
- Meets ROHS, FCC, and CE EMI requirements
NOTE: Please make sure your host supports DP™1.4 Alt mode.
