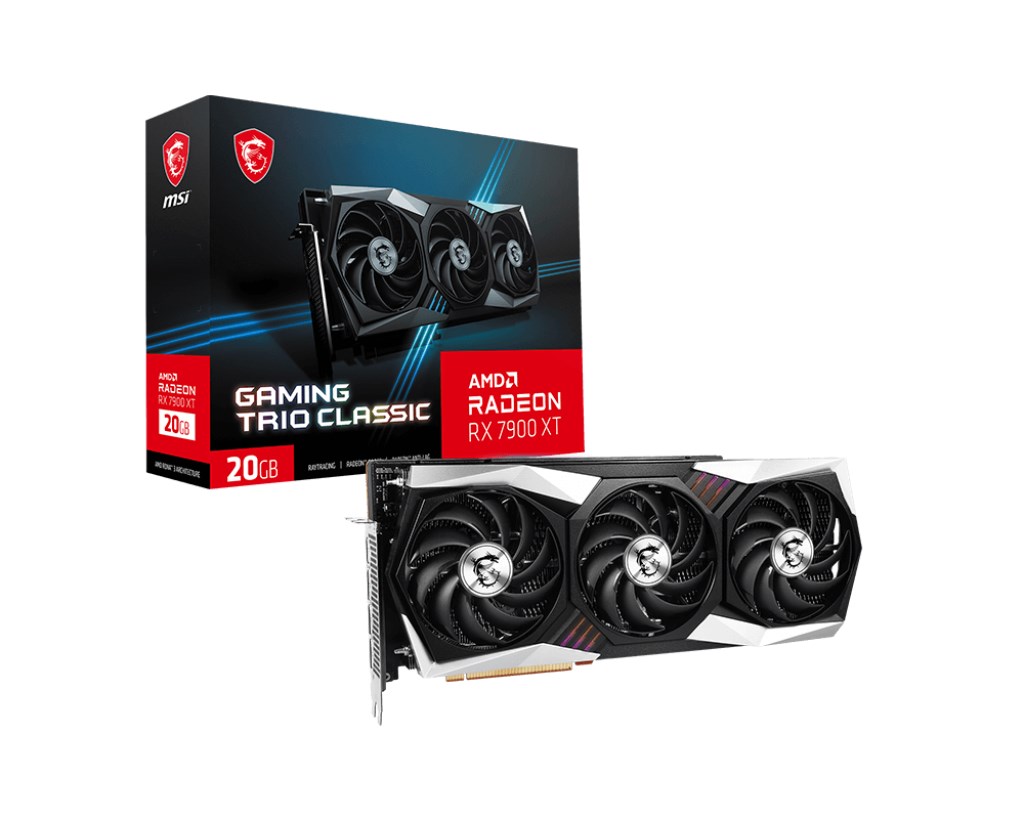

MSI Radeon RX 7900 XT GAMING TRIO CLASSIC 20G

Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.3

Boost Clock / Memory Speed

• Up to 2400 MHz / 20 Gbps
• 20GB GDDR6
• DisplayPort x 3 (up to v2.1)
• HDMI™ x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI™ 2.1)

TRI FROZR 2 Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

• Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

• MSI's exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

MODEL NAME

Radeon™ RX 7900 XT GAMING TRIO CLASSIC 20G

GRAPHICS PROCESSING UNIT

AMD Radeon™ RX 7900 XT

INTERFACE

PCI Express Gen 4

STREAM PROCESSORS

5376 Units

CORE CLOCKS

Boost: Up to 2400 MHz
Game: Up to 2000 MHz

MEMORY SPEED

20 Gbps

MEMORY

20GB GDDR6

MEMORY BUS

320-bit

OUTPUT

DisplayPort x3 (up to v2.1)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

315 W

POWER CONNECTORS

8-pin x 3

RECOMMENDED PSU

750W

CARD DIMENSION (MM)

325 x 141 x 56 mm

WEIGHT (CARD / PACKAGE)

1618g / 2348g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

FREESYNC™ TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
