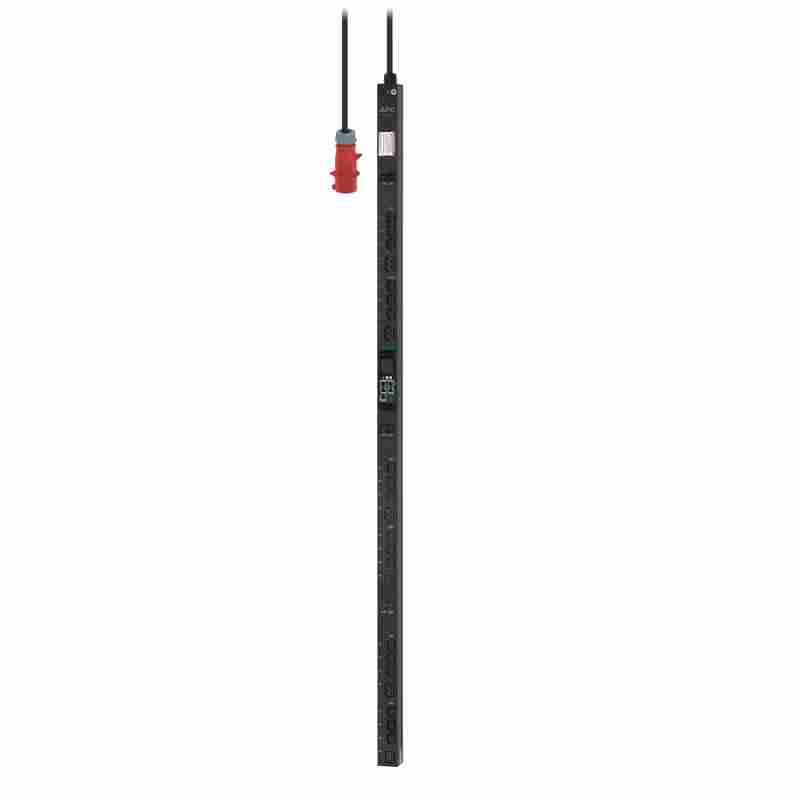

APC EasyPDU, Metered-by-Outlet with Switching, ZeroU, 22kW, 3PH, (18) C13& (6) C19

Spínané stojanové jednotky PDU pro distribuci napájení (PDU) Easy obsahují nejen běžný zásuvkový panel, ale nabízí také pokročilou správu napájení a monitorování zatížení serverových a síťových stojanových řešení. Včetně vzdáleného řízení zapínání / vypínání jednotlivých zásuvek.

EasyPDU, Metered-by-Outlet with Switching, ZeroU, 22 kW, 230V, (18) C13 & (6) C19
L1 Bank1 : 3x C13 outlets and 1x C19 outlets
L1 Bank 2 : 3x C13 outlets and 1x C19 outlets
L2 Bank 3 : 3x C13 outlets and 1x C19 outlets
L2 Bank 4 : 3x C13 outlets and 1x C19 outlets
L3 Bank 5 : 3x C13 outlets and 1x C19 outlets
L3 Bank 6 : 3x C13 outlets and 1x C19 outlets

Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.
Includes: Installation guide, Rack mounting brackets, Safety guide
Main Input Voltage  3 fáze
Main Output Voltage  230 V
plug standard  IEC 60309 32 A 3F+N+PE
délka kabelu 3 m

1% Metering Accuracy
Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.

Metering-by-Outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.

Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.

Easy Switched Rack PDU Features & Benefits
Manageability
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.

Network Port Sharing
Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.

Outlet Power Sequencing
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.



Výstupní zásuvky  (20) IEC 320 C13
     (4) IEC 320 C19
Jmenovité výstupní napětí  230V
Jmenovité vstupní napětí   230V
Typ připojení vstupu  IEC 309 32A 2P+E
Délka přívodního kabelu  3 metry
