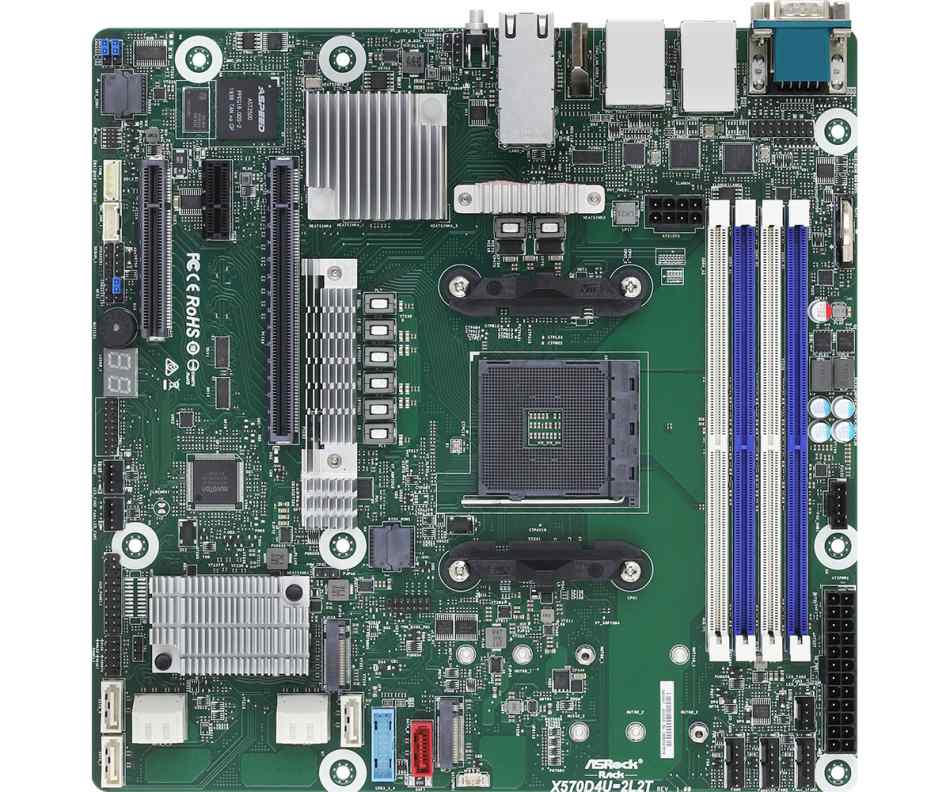

ASRock X570D4U-2L2T

Physical Status
Form Factor micro-ATX
Dimensions 9.6"x9.6" (244mmx 244mm)

Processor System
CPU supports 3rd Gen AMD Ryzen™ Processors and 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics
Socket AM4 PGA 1331
Power Design 105W
Chipset AMD X570

System Memory
Capacity 4 DIMM slots (2DPC)
Type 288-pin DDR4 ECC* and non-ECC UDIMM
* ECC support varies by CPU
DIMM Size Per DIMM up to 32GB per DIMM
DIMM Frequency 3rd Gen AMD Ryzen™ Processors : up to 3200 MHz
2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: up to 2666 MHz
Voltage 1.2V

Expansion Slot
PCIe x 16 - SLOT6: PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to x8 when SLOT4 is occupied
*Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics
PCIe x 8 - SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU]
*Disabled when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics
PCIe x 1 - SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics
M.2 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]

*Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics

Storage
SATA Controller X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device

Ethernet
2 RJ45 (10GbE) by Intel® X550-AT2
2 RJ45 (1GbE) by Intel® i210

Management
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN

Graphics
ASPEED AST2500:
1 DB15, 1 (15-pin) header
2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics:
1 HDMI

Rear Panel I/O
HDMI 1
VGA Port 1
USB 3.2 Gen2 Port 2
Lan Port 2 RJ45(1GbE), 2 RJ45 (10GbE)
Dedicate LAN 1
Serial Port 1
UID Button/UID LED 1

Internal Connector
Front Lan LED Connector 1 for LAN3/LAN4
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header 1
TPM Header 1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header 1
VGA Header 1
PMBus CONN 1
Buzzer 1
Fan Header 3 (6-pin), 3 (4-pin)
Front Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header 1
BMC_SMB Header 1
Power Connector 1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS 1 contact pads

Onboard LED
Standby PWR LED 5vsb 1
80 Debug Port LED 1
Fan Fail LED 6

System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash

Hardware Monitor
Temperature CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing
Fan Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
