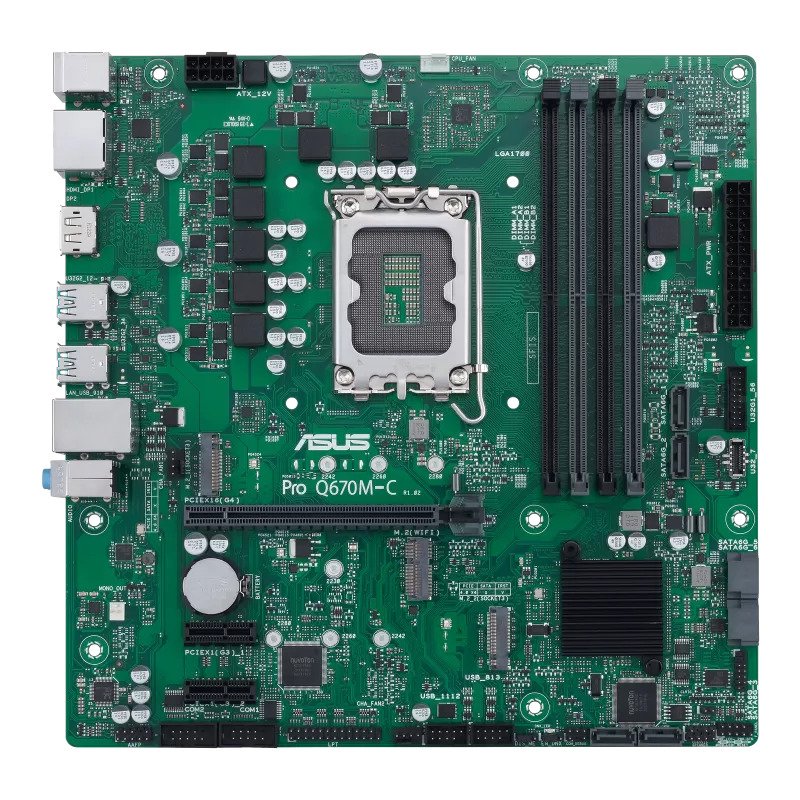

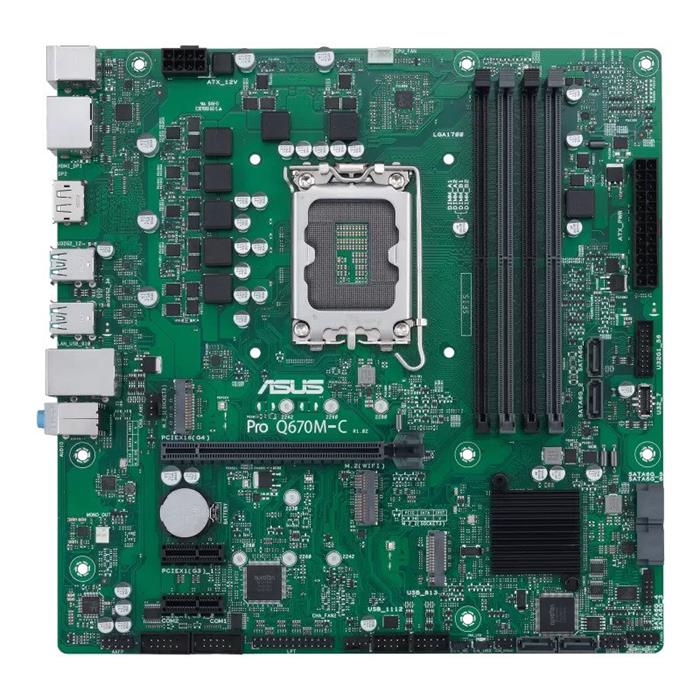

ASUS PRO Q670-C-CSM

Chipset: Intel Q670 Chipset Rozměrový formát: mATX Form Factor (24.4 cm x 24.4 cm) Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR5 4800 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: XMP Grafická karta: (na základě procesoru) *2 x DisplayPort 1.4 *1 x HDMI port 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: 1 x Intel I219LM 1Gb Ethernet Rozšiřující sloty: *1 x PCIe 4.0 x16 slot *2 x PCIe 3.0 x1 slots RAID řadič: *NVMe RAID 0/1/5 *SATA RAID 0/1/5/10. SATA: 6 x SATA 6Gb/s ports M.2: 2 x M.2 slots (Key M) USB: *Interní: *1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Externí : *4 x USB 3.2 Gen 2 ports (4 x Type-A) *2x USB 2.0 ports (2 x Type-A) Interní porty: *Fan and cooling related *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *Storage related *2 x M.2 slots (Key M) *6 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Miscellaneous *1 x Clear CMOS header *1 x Chassis Intrude header *2 x COM Port headers *1 x Front Panel Audio header (AAFP) *1 x COM debug header *1 x DIS ME jumper *1 x LPT header *1 x Mono-out header(with Amp IC) *1 x M.2 slot (Key E) *1 x Speaker header *1 x 10-1 System Panel header Externí porty: *4 x USB 3.2 Gen 2 ports (4 x Type-A) *2x USB 2.0 ports (2 x Type-A) *2 x DisplayPort *1 x HDMI port *3 x Audio jacks *1 x Intel 1Gb Ethernet *1 x PS/2 keyboard (purple) port *1 x PS/2 mouse (green) port BIOS: 256 Mb Flash ROM
