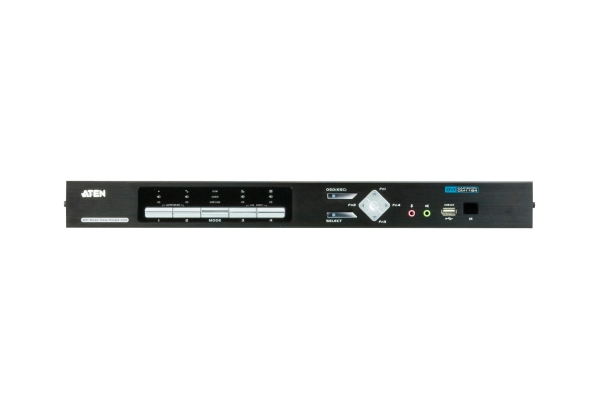

ATEN 4-Port USB DVI Multi-View KVMP Switch

Multi-view console controls up to 4 video sources on one screen
Function control and system setting via Front Panel, OSD, IR Remote – display mode, port selection, daisy chain, and so on
Supports superior video quality – up to 1920 x 1200
DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164

To improve the operational efficiency of intensive monitoring applications, there needs to be a fast and convenient way to view and manage more computers simultaneously, permitting faster response times from a single location. The CM1164 4-port USB DVI-D KVMP Control Center charts a revolutionary new direction in KVM switch functionality by combining a 4-port DVI-D switch with a 2-port USB hub, and providing the following display modes: Quad View mode, which simultaneously displays four digital computers/video sources on a single screen; as well as Picture in Picture mode(Dual, Triple or Quad) and Full Screen mode to meet the demands.

In addition, CM1164 provides Daisy Chain Control (DDC) functionality. A (DCC) port allows a user to connect and control up to four CM1164 units via a single console. This enables the use of only one keyboard/mouse over several computers or another CM1164.This is convenient for growing networks that need to monitor and manage more computers – daisy chain up to four units and switch between up to 16 computers.

With its unique design and innovative features, the CM1164 4-port USB DVI-D KVMP Control Center is the right solution for a wide range of practical applications, including control rooms, monitoring systems, and traffic control centers – allowing you to switch seamlessly between four DVI-enabled PCs, and share USB peripherals and audio from a multi-view console.

Features:

One USB console independently and simultaneously controls four DVI-D computers and two additional USB devices
Multi-view console controls up to 4 video sources on one screen
Function control and system setting via Front Panel, OSD, IR Remote – display mode, port selection, daisy chain, and so on
Channel Editor - edit display windows, and other functions with the mouse and on-screen control panel
Hardware Cursor – OSD navigation via console mouse
DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
2-port USB 2.0 hub built in, fully compliant with USB 2.0 specification
Computer selection via front panel push buttons, hotkeys, IR Remote Control and OSD (with mouse* function enabled)
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation /bypass feature that support most multimedia keyboards
Independent switching for USB peripheral port, audio function, and KVM switch focus
Power on detection
Auto scan feature
Multiplatform support – Windows, Linux, Mac and Sun
Keyboard and Mouse support emulation and bypass
Superior video quality – up to 1920 x 1200 resolution
Multilingual keyboard mapping-Supports English, Japanese, and French keyboards
Full bass response provides a rich experience for 2.1 channel audio
Mac/Sun keyboard support and emulation**
Upgradeable firmware through computers' USB port

* For 3-key USB wheel mouse only
**PC keyboard combinations emulate Mac/Sun keyboards.
**Mac/Sun keyboards only work with their own computers.

Package Contents
1x CM1164 4-port USB DVI-D KVMP Control Center
4x 2L-7D02U KVM Cable Sets (length – 1.8m)
1x IEC320 Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
