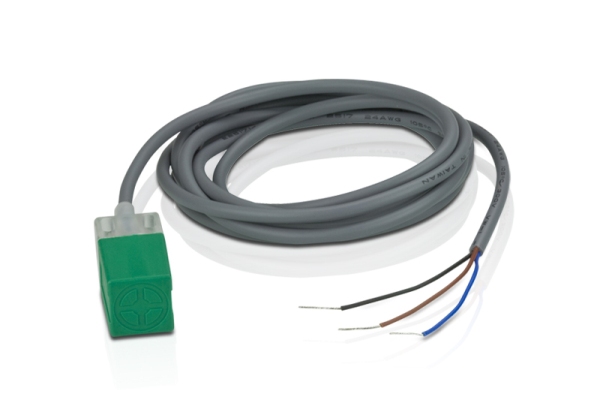

Aten Inductive Proximity Door Sensor

For the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.





* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.

**Support PE7/PE8/PE9 series only

Package Contents

1x Inductive Proximity Door Sensor
2x Screw
1x Bracket
1x Velcro

Specification:

Operating voltage 10-30 VDC
Ripple of power 20% peak to peak
Current Consumption 10 mA(Max)
Sensing distance 5.0 mm
Hysteresis 10% of sensing distance max
Response frequency 800 Hz(Min)
Output method PNP
Output current 150 mA(Max)
Residual voltage 0.1 V(max)
Leakage current 0.8 mA(Max)
Protection circuit Short circuit & polarity reversed protection
Connection 3c/4.0
Dielectric strength 2.5 kv / 1 minute(Min)
Insulation strength 100 M Ohm / 500 VDC

Environmental

Operating Temperature -20°C-80°C
Humidity 35%-95% RH
Protection class IP-67
