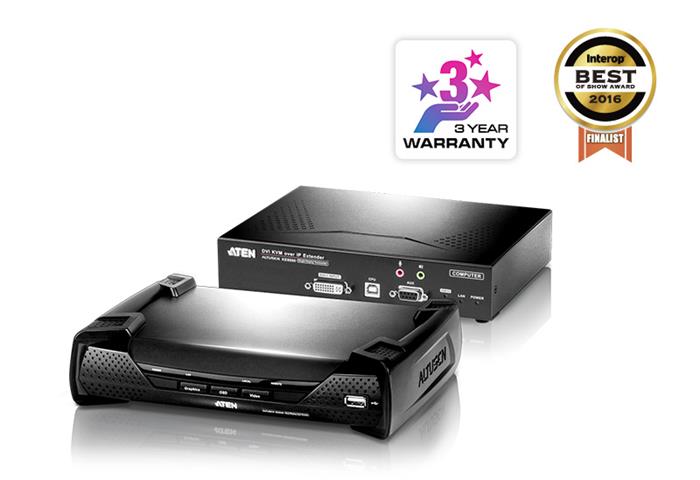

ATEN KE6900AR DVI-I Single Display KVM over IP Extender Receiver

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™ KE6900 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Utilizing expertise in Over IP KVM solutions, the KE6900 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6900 Single View Extender supports one DVI display at each end.

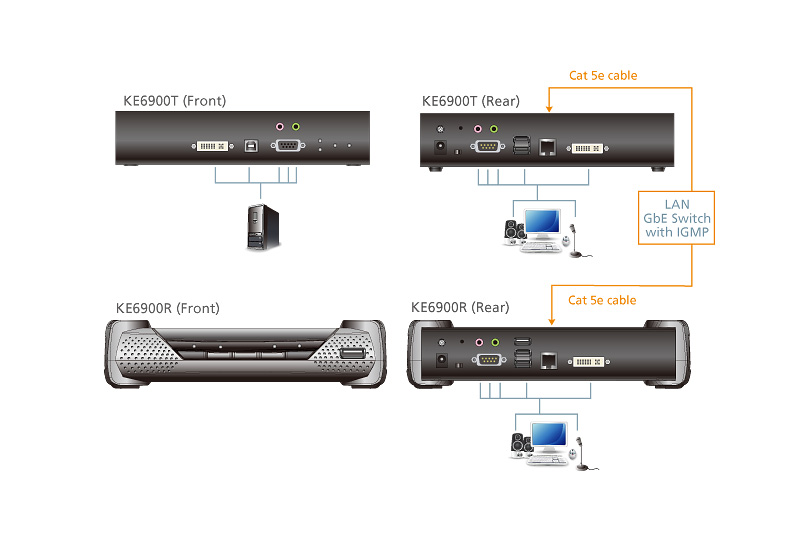

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

The Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6900 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6900 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Features

Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX - automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
Virtual Media Support
Hot pluggable
Rack Mountable
Upgradeable firmware
Recommended Network Switches:
Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
• Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
• HP Procurve 2920
• H3C S5120
• Huawei S5700
• DLink DGS-1510

Package Contents
1x KE6900T DVI KVM Over IP Extender (Transmitter)
1x KE6900R DVI KVM Over IP Extender (Receiver)
2x 0AD8-8005-40MG Power Adapters
2x LIN2-418K-E12G Power Cord
1x 2L-7D02U USB DVI-D KVM Cable (1.8m)
1x Mounting Kit for KE6900T
1x User Instructions

Specification

Connectors
USB Port
2 x USB Type A Female (White)

Console Ports
2 x USB Type A Female (White)
1 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)

Power
1 x DC Jack (Black)

LAN Ports
1 x RJ-45 (Black)

Switches
OSD
1 x Pushbutton
N/A
Video
1 x Pushbutton
N/A
Graphics
1 x Pushbutton
N/A
Reset
1 x Semi-recessed Pushbutton

LEDs

Link
1 (Green / Orange)

Power
1 (Blue)

Local
1 (Green)

Remote
1 (Green)

Emulation

Keyboard / Mouse
USB

Power Consumption
DC5V:6.9W:58BTU

Video Resolution
Up to 1920 x 1200 @ 60Hz

Environmental
Operating Temperature
0–50°C

Storage Temperature
-20–60°C

Humidity
0–95% RH, Non-condensing

Physical Properties

Housing
Metal

Weight
1.25 kg ( 2.75 lb )

Dimensions (L x W x H)
22.75 x 17.16 x 5.48 cm
(8.96 x 6.76 x 2.16 in.)
