ATEN KE6912 DVI Dual Link KVM over IP Extender PoE

Supports video resolutions up to 2560 x 2048 @50Hz, including resolutions of 2560 x 1600 @60Hz and 2048 x 2048 @60Hz
Adaptive Fast Switching – automatically fast switches between different Tx video resolutions on a Rx display within 0.3 second
“Push” and “Pull” - share content instantly by just one click
Supports power redundancy with 1 DC Jack and Power over Ethernet (PoE) function (compliant with the IEEE 802.3at standard)

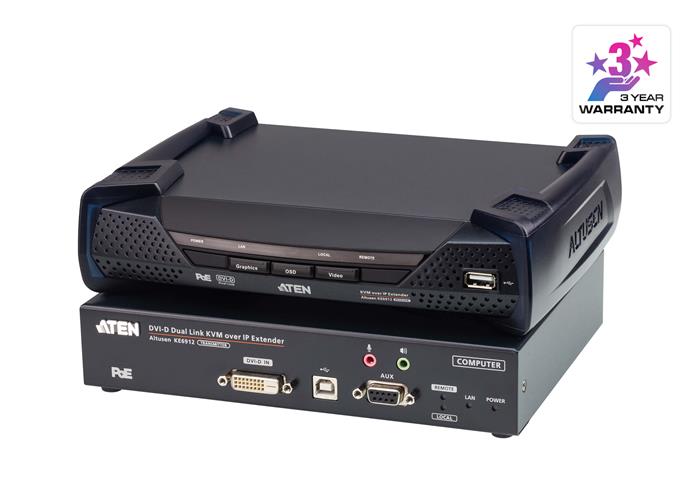

The KE6912 2K DVI-D Dual Link KVM over IP Extender consists of a high performance IP-based transmitter (KE6912T) that connects to the computer and receiver (KE6912R) that provides console access from a separate location. The KE6912 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.
The KE6912 supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with minimal latency. The extender also supports 2K x 2K video resolution (2048 x 2048 @ 60Hz), which is used widely in the Air Traffic Control (ATC) industry.

The KE6912 supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN, ensuring 24/7 availability of remote access to servers. To connect via the SFP slot, the extender supports 1Gbps SFP fiber module* expansions, enabling connections via fiber optic network to extend transmission distances up to 10km.

The KE6912 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.

The KE6912 can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender, the KE6912 can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

When integrated with the KE Matrix Management Software, the KE6912 supports more advanced features such as authentication lock, adaptive fast switching, connection redundancy, disconnection alert, boundless switching, “Push” and “Pull”, video wall and multi-display setups, and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE6912 over a network.

More functions include auto detection of all KE Series extenders** in the same subnet for the sake of fast installation or configuration, username / password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6912 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in traffic management centers, retail surveillance centers, facility situation rooms, command control centers, utilities process control centers, broadcasting distribution monitoring systems, network operations centers (NOC), and many other industries where matrix extending is required.

*The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
**Refer to www.aten.com for a list of the KE Series extenders.

Features

Exclusive Features for ATC Industry*
Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
Adaptive Fast Switching – automatically fast switches between different Tx video resolutions on a Rx display within 0.3 second
Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
“Push” and “Pull” – share content instantly to/from a single Rx or video wall by just one click
Authentication Lock – automatically logs in when the power of the system is resumed after power off
Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
Disconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection status


Advanced Features*
Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
Supports both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
Configurable user and group permissions for access and control of KE devices
Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**

*These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)
**The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.


Hardware
Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
Supports stereo speakers and stereo microphone
Supports Virtual Media or vUSB
Auto-MDIX – automatically detects cable type
Built-in 8KV/15KV ESD protection and 2KV surge protection
Fanless design for silent operations that are energy efficient
Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failover
Support 1Gbps SFP fiber module expansions*** up to 10 km
1 DC Jack + PoE
Support Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standard
Rack Mountable – Mounting options:
•2X-021G Dual Rack Mount Kit
•2X-031G Single Rack Mount Kit
***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
