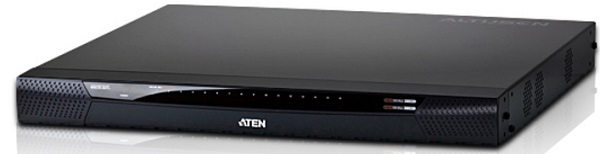

ATEN KN-2116V

Aten´s new generation of KVM over IP switches - KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association– KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.




The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, and Adapter ID.

With dual on-board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers. The switch´s design features Green IT solutions that include four temperature sensors to regulate up to six fans – run at optimum speeds – throttling down and speeding up depending on room temperature, reducing data center operational costs through a more efficient way of maintaining energy.

With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.

Computer Connections

Direct 16
Maximum 256 (via Cascade)

Console Connections
Local 1
Remote 2

Port Selection Pushbutton, GUI, Hotkey

Connectors

Console Ports
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)

KVM Ports 16 x RJ-45 Female (Black)

Power 2 x 3-prong AC socket

LAN Ports 2 x RJ-45 Female (Black)

PON 1 x RJ-45 Female (Black)

Modem 1 x RJ-45 Female (Black)

USB Port 3 x USB Type A Female

Audio 2 x Audio Jack Female


Switches

Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
Port Selection 2 x Pushbutton

LEDs

Online 16 (Green)
Selected 16 (Red)
Power 1 (Blue)
Link 10 / 100 / 1000 Mbps 2 (Red / Red + Green / Green)

Emulation

Keyboard / Mouse PS/2 / USB (PC, Mac, Sun) / Serial

Video 1600x1200 @ 60Hz

Scan Interval 1-255 Seconds

Maximum Input Power Rating 100-240V AC ; 50-60Hz; 1.0A

Power Consumption

Single Power 115V / 32.6W ; 230V / 33.4W
Dual Power 115V / 38W ; 230V / 38.7W
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing

Physical Properties
Housing Metal
Weight 5.91 kg ( 13.02 lb )
Dimensions (L x W x H) 43.84 x 41.21 x 4.40 cm
(17.26 x 16.22 x 1.73 in.)
