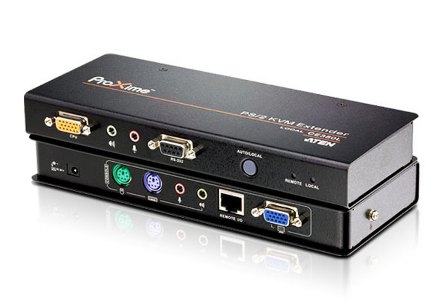

ATEN KVM extender CE-350A PS/2 , max. 150m CAT5

audio a konzole extender pro konzoli s PS/2 klávesnicí a myší +RS-232 port, vzdálenost až 300 metrů přes Cat. 5 STP/FTP, ochrana proti přepětí, úchyty do 19" racku

The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

Local and Remote Units connect at distances up to 150 m using Cat 5e cable
Adjustable gain control - manually adjust signal strength to compensate for distance
Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC) and storage of settings
RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
Audio Enabled - supports stereo speakers and microphone
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
Superior Audio - no loss in audio quality at 150 m
Supports Wide Screen formats
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install - no software required - connecting cables to the devices is all it takes


Package Contents
1x CE350L PS/2 KVM Extender (Local Unit)
1x CE350R PS/2 KVM Extender (Remote Unit)
1x Custom PS/2 KVM Cable Set (1.8 m)
2x Power Adapters
1x Rack Mount Kit
2x Grounding Wires
1x User Manual
1x Quick Start Guide


K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
