Aten Lightweight PS/2-USB VGA LCD Console with USB Peripheral Support

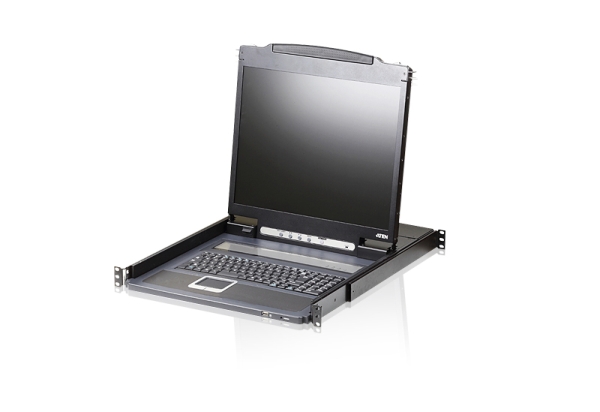

The CL3000 Lightweight PS/2-USB LCD Console is a LCD KVM console that serves as the front end console for compatible KVM switches.

Lightweight and with a 19” power-saving LED-backlit LCD, the CL3000 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, LED-backlit LCD monitor, and touchpad in a 1U housing.

In addition, testing is performed utilizing the MIL-STD-810G* (Method 514.6, Procedure 1, Category 4 Common Carrier) procedure for Vibration Certification. MIL-STD-810G testing provides proven reliable operations of the CL3000 in harsh environments, by using advanced testing to emphasize the equipment's environmental design and limits in real world conditions that it will experience throughout its life; such as operating in a moving vehicle or on a factory floor where high vibrations occur often.

*MIL-STD-810G Method 514.6, Procedure I, Category4
(Common Carrier, US Highway Truck Vibration Exposure) Exposed to random vibration tests at different levels based on axes from 5 to 500Hz, for one hour per axis. Total levels applied are 1.07Grms vertical axis (Z axis), 0.76Grms transverse axis (Y axis), and 0.76Grms longitudinal axis (X axis)

CL3000N: 19" LCD

Features:

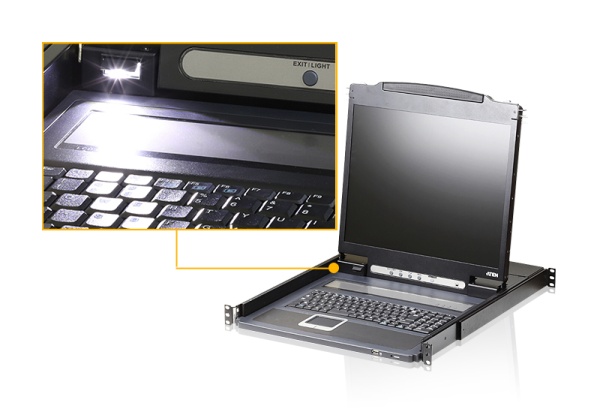

¦ Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
¦ Integrated KVM console featuring a19" LCD monitor
¦ Green power LED-backlit LCD monitor saves energy
¦ Lightweight design for easier installation
¦ Advanced Random Vibration Resistance Testing - MIL-STD-810G Certified
¦ Dual Interface – supports computers with PS/2 or USB keyboards and mice
¦ Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)
¦ Multiplatform support – Windows, Linux, Mac, and Sun
¦ Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
¦ Firmware upgradable

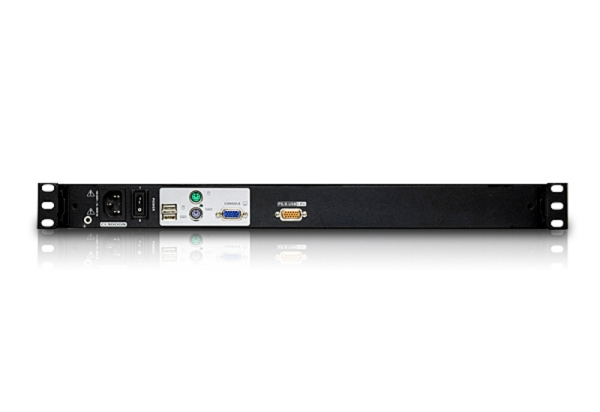

¦ Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)
¦ Console lock – the console remains securely locked away when not in use
¦ Slideaway™ housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
¦ DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
¦ Adjustable depth to fit within a rack
¦ Standard 105-key keyboard
¦ Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Ialitan, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Package Contents
1x CL3000 Lightweight PS/2-USB LCD Console with Standard Rack Mounting Kit
1x 2L-5302UP PS/2-USB KVM Cable
1x 1ADP-0005-005G Power Cord
1x User Instructions
