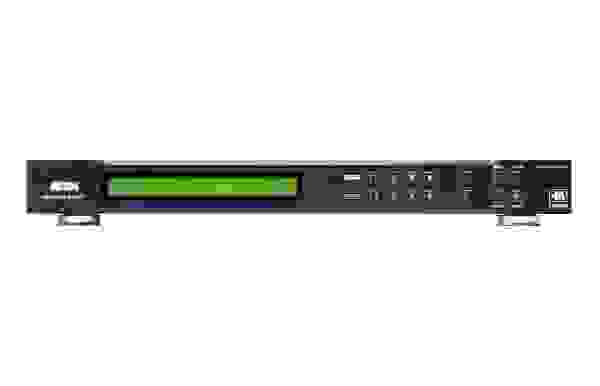

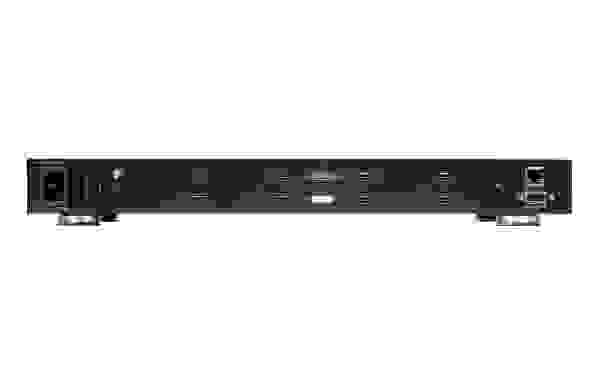

ATEN VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler

4K is the next generation of image quality for high definition video. 4K delivers eight million pixels which is four times as much detail as 1080p Full HD resolutions. ATEN’s VM6404H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6404H provides powerful HD processing to produce 4K resolutions across four displays with crystal clear images.

The VM6404H supports 4K@60Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM6404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

* HDMI 2.0 supports 3840 x 2160 @30 Hz (4:4:4), 3840 x 2160 @60 Hz (4:2:0), 4096 x 2160 @ 30Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:2:0) resolutions

The VM6404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time reporting.

Features

4 x 4 HDMI input/output connections
Multiple means for system configuration including front-panel pushbuttons, IR, RS-232 control, and Ethernet connections for web GUI or Telnet
4K Scaler – features a 4K video scaling function to convert input resolutions to the display’s native resolutions
Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Video wall – allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
4K Video Wall using Lower-Resolution Displays – split a 4K signal to four 1080p displays to form a 2x2 4K video wall
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
Consumer Electronics Control (CEC) supported*
ESD protection for HDMI
Rack mountable (1U design)
*Note:
1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Package Contents
1x VM6404H 4 x 4 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Mounting Kit
1x User Instructions

Specification

Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
1.8 m
Video Output
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
15 m
Video
Max. Data Rate
10.2 Gbps (3.40 Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance
Up to 15 m
Control
RS-232
Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Ethernet
1 x RJ-45 Female
EDID Settings
EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power
1 x 3-prong AC Socket
Power
Maximum Input Power Rating
100-240 VAC;50-60Hz;1.0A
Power Consumption
AC110V:47.6W:223BTU
AC220V:47.5W:223BTU
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
4.72 kg ( 10.4 lb )
Dimensions (L x W x H)
43.24 x 30.73 x 4.40 cm
(17.02 x 12.1 x 1.73 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
