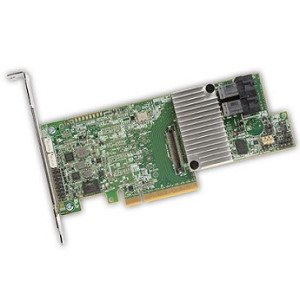

Broadcom LSI MegaRAID SAS 9361-8i

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

•Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
•Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
•Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
•Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
•Add more protection and peace of mind with optional CacheVault® flash cache protection.

MegaRAID SAS 9361-8i (2GB)

MegaRAID SAS 9361-8i, Quick Installation Guide, LP Bracket

Physical Dimensions
6.6" x 2.536" (Low-Profile)

RAID-on-Chip Controller
LSISAS3108 dual core RAID on Chip (ROC)

RAID Management Software
MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)

Cache Protection
Optional CacheVault Flash Module (LSICVM02)

Host Bus Type
x8 lane PCI Express® 3.0

Cache Memory
2GB 1866MHz DDRIII SDRAM

Internal Ports
8

Data Transfer Rates
Up to 12Gb/s per port

Devices Supported
Up to 128 SAS and/or SATA hard drives and SSDs

Operating Temperature
Maximum ambient: Controller Card 55°C, with optional CacheVault accessory (LSICVM02) 55°C

Operating Systems
Extensive support includes Microsoft® Windows® Server 2012/8 & 7/2008/Vista/2003/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. See www.lsi.com/support for the most complete list of supported operating systems.

Internal Connectors
Two HD Mini-SAS SFF8643 (Horizontal mount)

MTBF
>1,343,187 hours

Operating Voltage
+3.3V, +12V

Regulatory Certifications
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950

Warranty
3 years, free 5x8 phone support, advanced replacement option.
