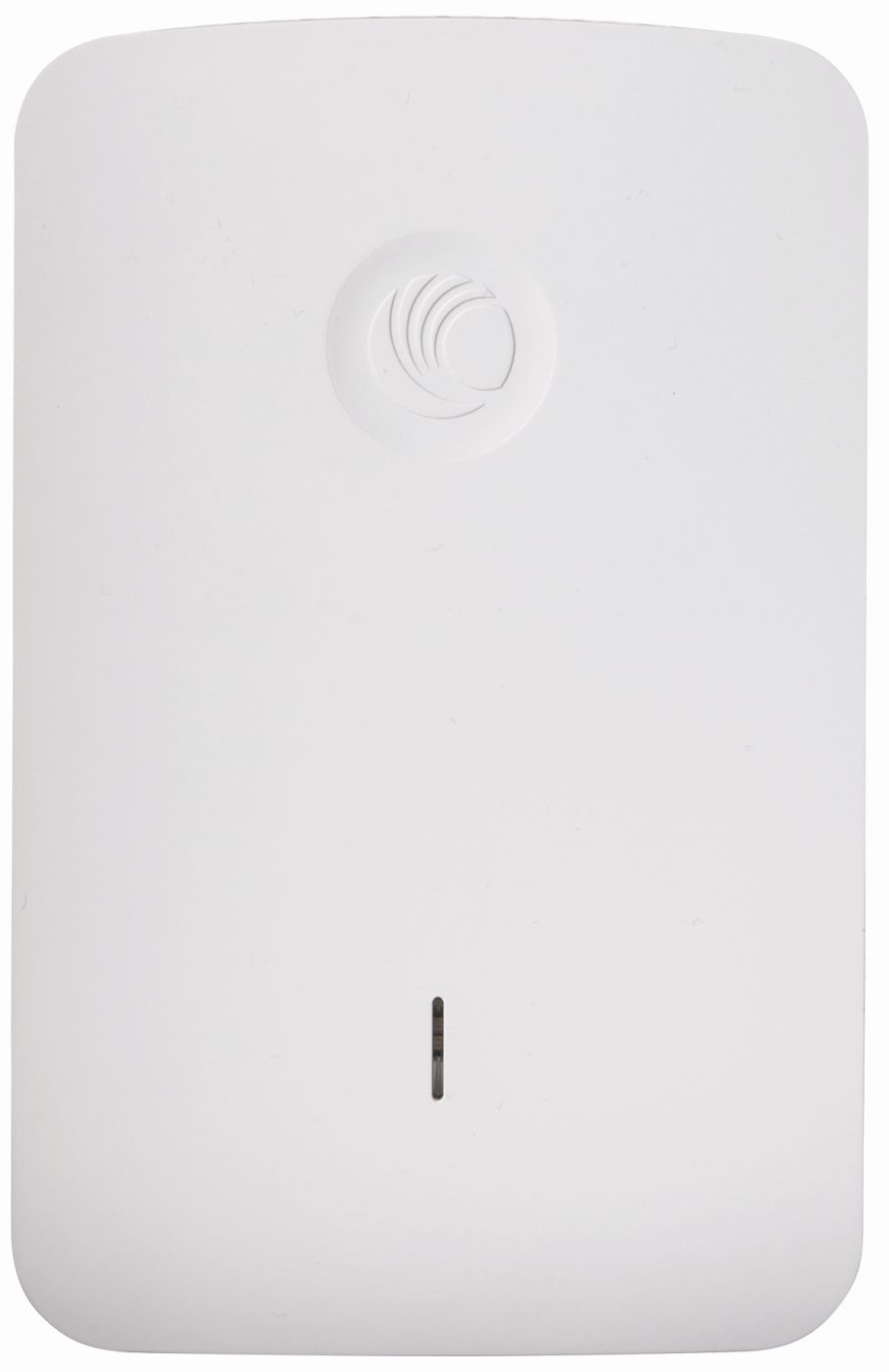

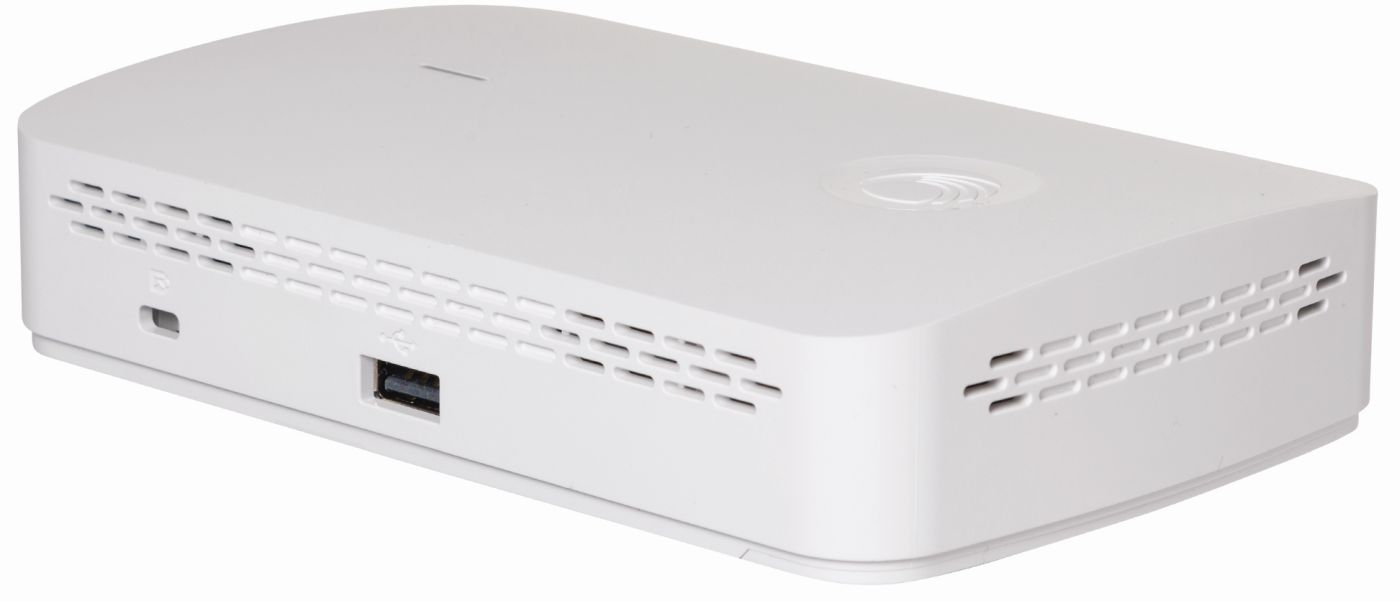

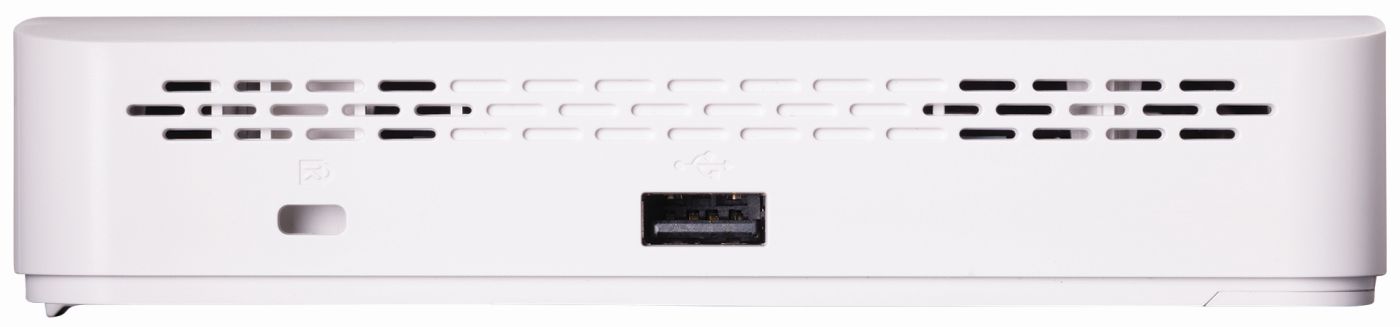

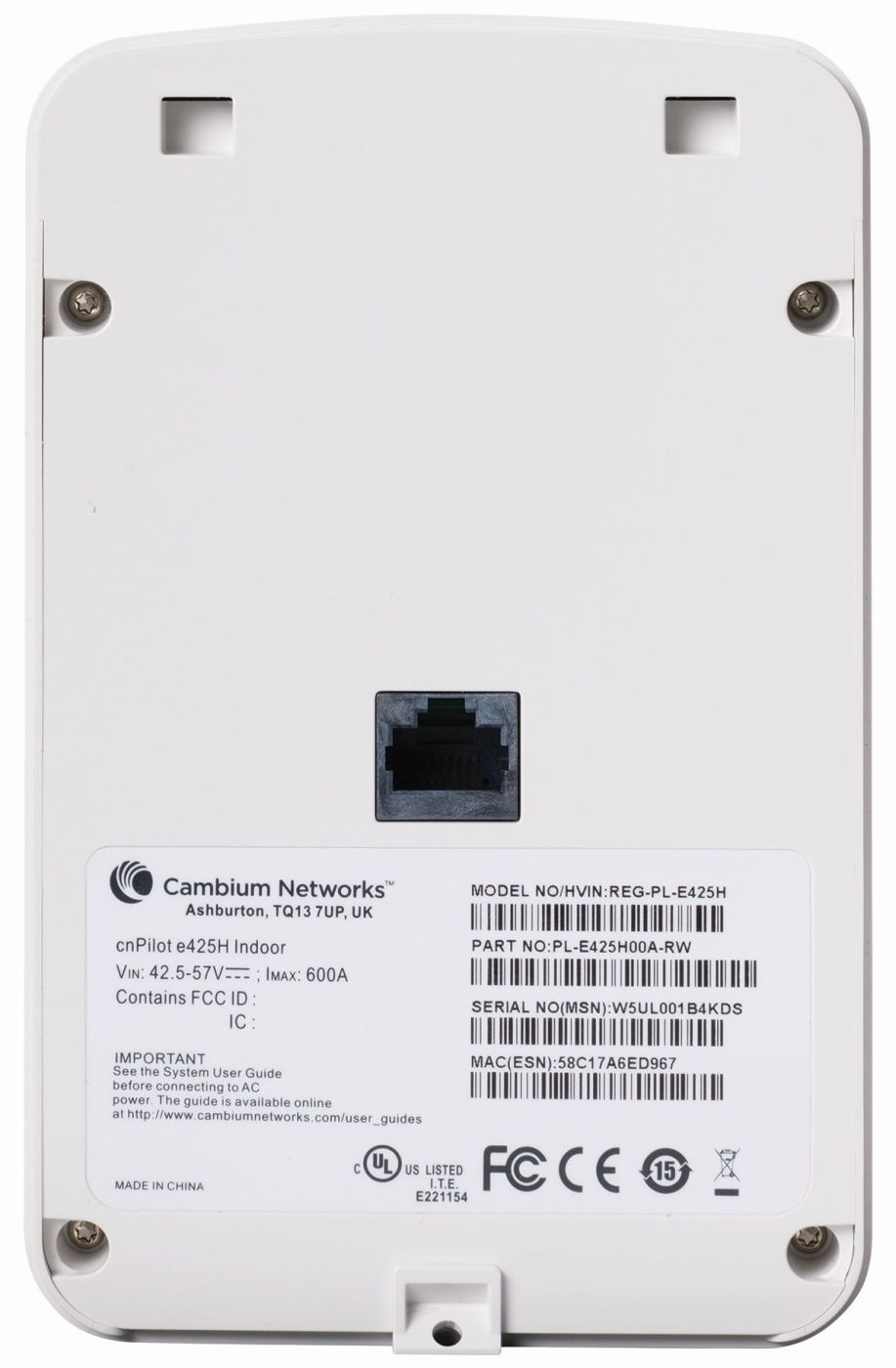

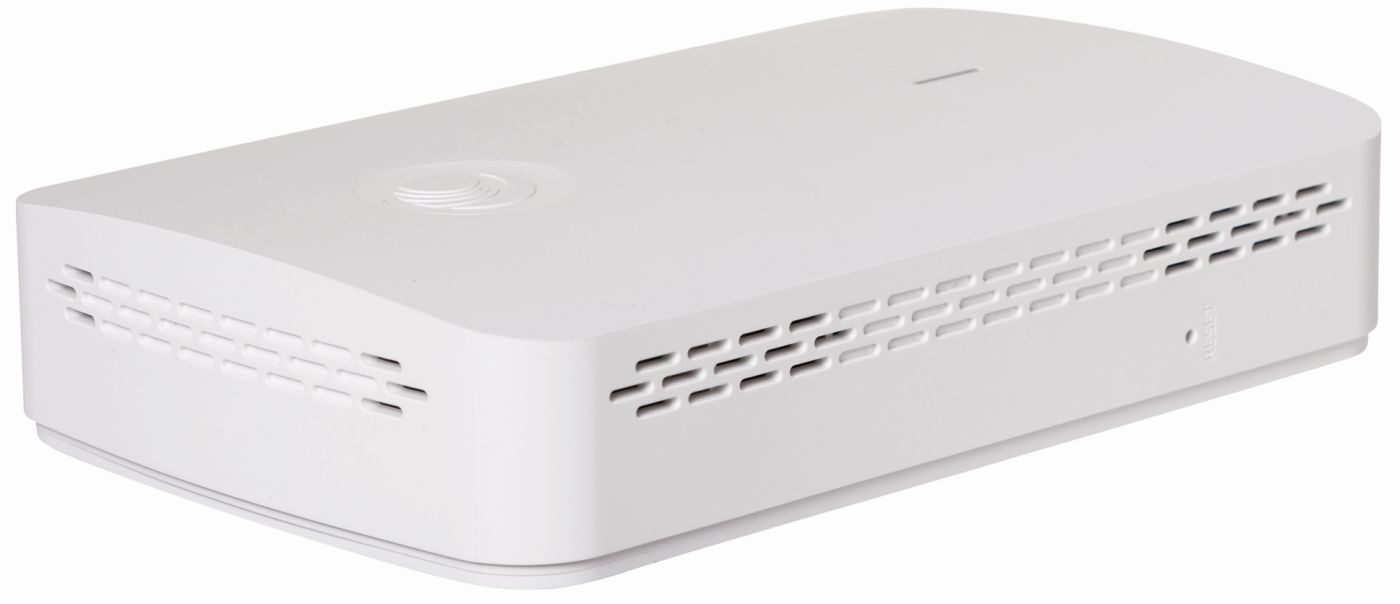

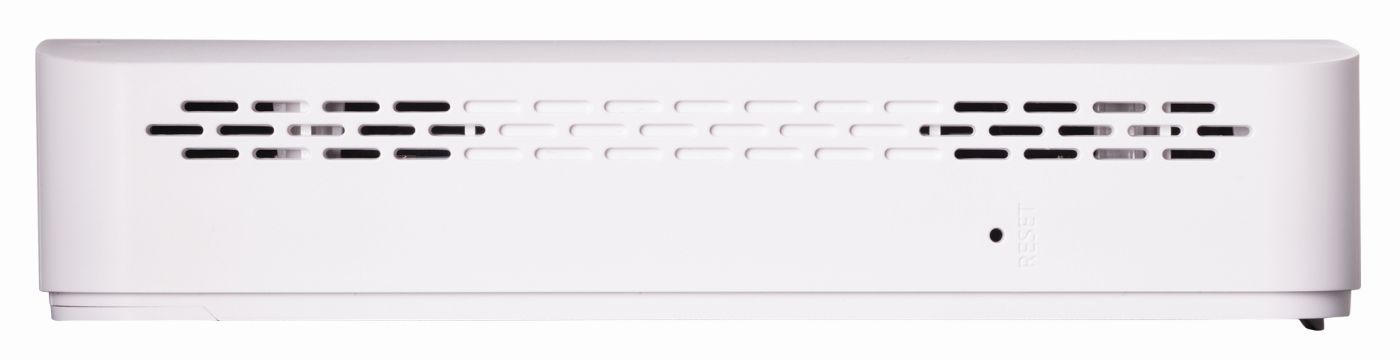

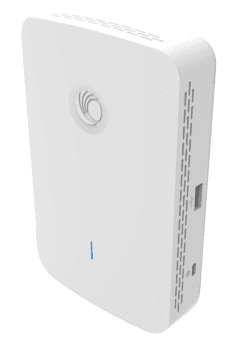

Cambium Networks cnPilot e425H wall plate, RoW

cnPilot e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.

Do-Not-Disturb Hotel Design

Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the e425 wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.

Designed For Fast Installation

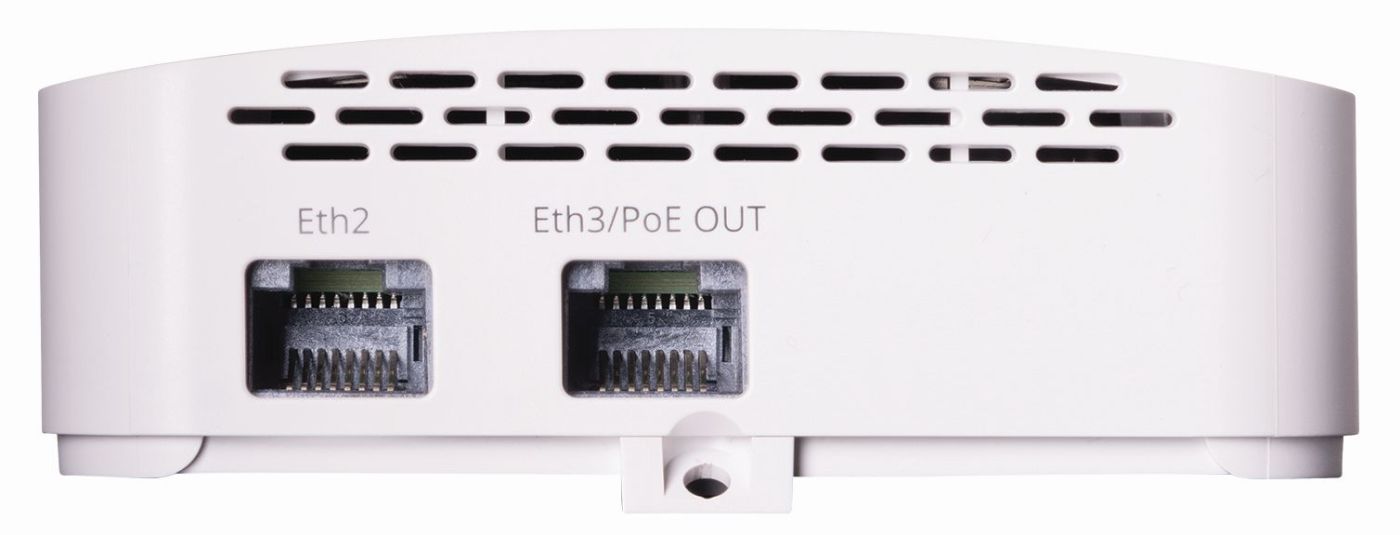

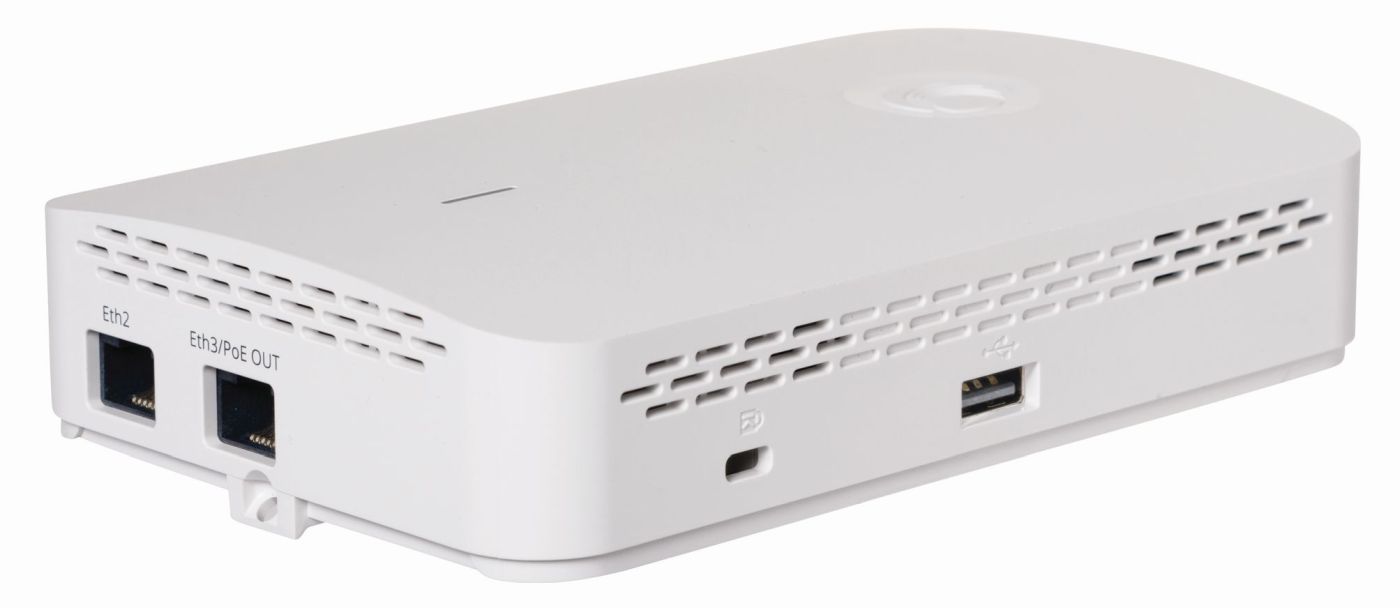

e425 install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. e425 has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing DHCP, and firewall. Deliver 15 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.

Key Features

• 802.11a/b/g/n/ac Wave 2
• 5 GHz (2x2), 2.4 GHz (2x2)
• passive PoE out
• 25 dBm EIRP (5 GHz)
• 27 dBm EIRP (2.4 GHz)
• Three-Gigabit Ethernet

Cloud-Managed Access

• Zero-touch onboarding
• Inventory tracking & monitoring
• Mass configuration & upgrade
• Dashboard views with alarms
• Troubleshooting
• Hierarchical device organization
