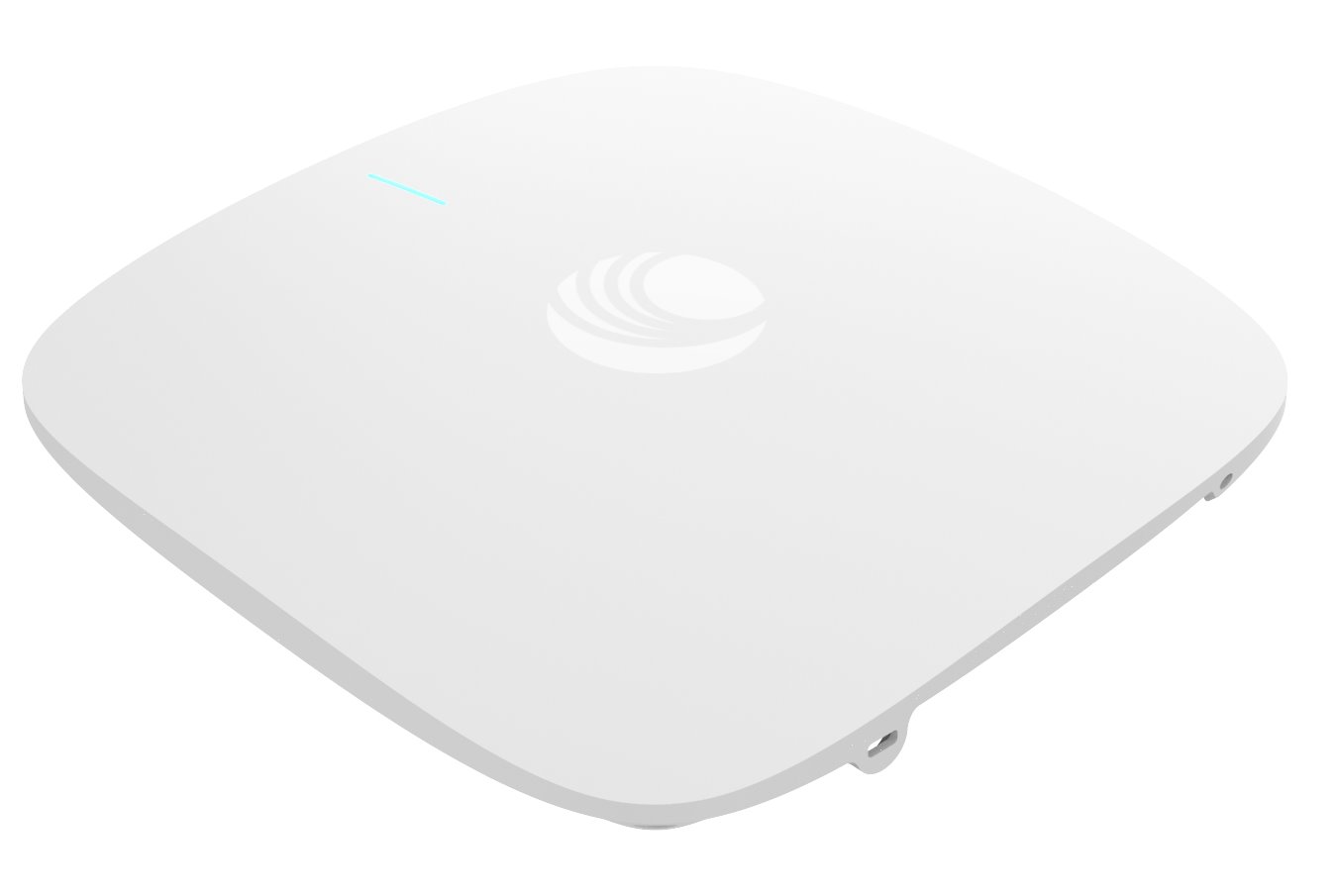

Cambium Networks XE3-4 Wi-Fi 6E (EU)

Designed for High Density and Edge Services

Wi-Fi 6E extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 Wi-Fi 6E access point enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode when sufficient 6 GHz clients are available. The XE3-4 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management

XE3-4 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Specification

• 2.11ax triple band 2.4 GHz, 5 GHz and 6 GHz Access Point
• 6.3 Gbps data rate
• dual software defined 5 GHz radios 2x2 and 4x4 configuration
• one 5 GHz radio (4x4) can be switched to 6 GHz band
• 1x1 integrated BLE 4.1 radio
• VHT MCS rates - 16/64/256/1024/4096-QAM
• 20/40/80/160 MHz channel sizes supported
• supported standards IEEE 802.11a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v
• 1 x 2.5 GbE uplink RJ45 port and 1 x 1Gbps uplink port
• 1 x USB 2.0 port
• integrated 4.85 dBi (2.4 GHz), 6.12 dBi (5 GHz) and 6.20 dBi (6 GHz) omnidirectional antenna
• max EIRP 31 dBm on 5 GHz and 30 dBm on 6 GHz
• supporting 1500 concurrent clients
• WPA3, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF, WMM, fast roaming (802.11r, OKC, Enhanced roaming)
• Mesh (multihop) on either band, Band steering, Load balancing, tunneling (L2TP/L2oGRE/PPPoE), Wired and wireles remote packet capture, auto logging, ZapD performance tool, rogue AP detection
• max power 32W (802.3bt) with USB/BLE or 22W with USB/BLE disabled
