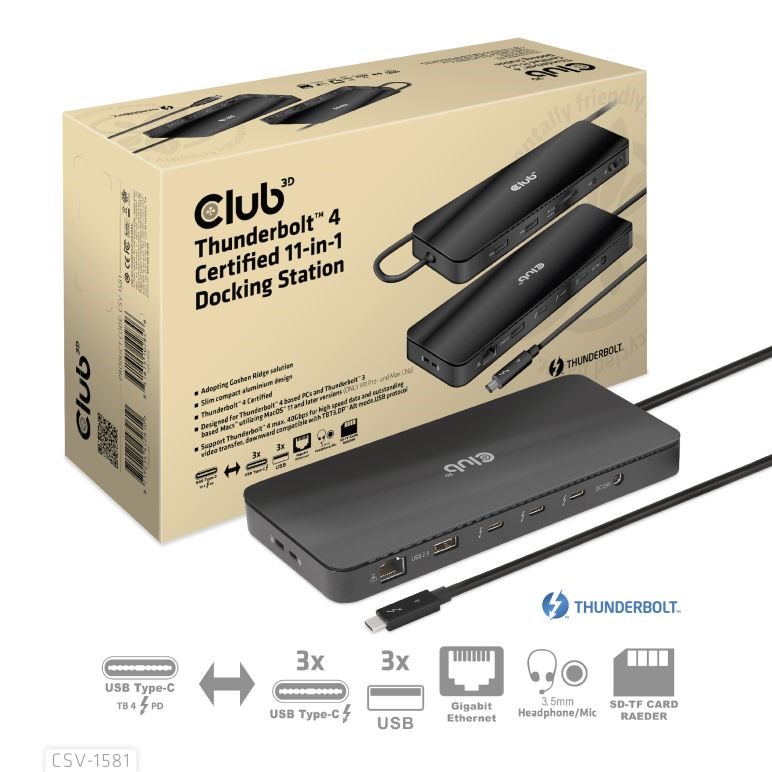

Club3D Dokovací stanice Thunderbolt 4 11v1, 3xUSB-C, 3xUSB-A, PD

Name: Club3D Dokovací stanice Thunderbolt 4 11v1, 3xUSB-C, 3xUSB-A, PD
Brand: Club 3D
SKU: 627860
Price: 4855.73 CZK
Availability: InStock

Part Nr.

CSV-1581

Kód zboží

1682279

Výrobce

Club 3D

EAN

8719214472603

Záruka

24 Měsíců

Thunderbolt 4 Certified 11-in-1 Docking Station Adopting Goshen Ridge solution Slim compact aluminum design <li style="text-align:

Dostupnost

Dostupnost na pobočkách

DPH

21%

Vaše cena s DPH

4 856 Kč

Vaše cena bez DPH

4 013 Kč bez DPH

Objednat

Hodnocení produktu

Hodnoceno 0x

Přidat k porovnání Porovnat

Poradit se: 244 402 102 ( Po - Pá: 9:00 - 18:00 )

Facebook Nastavit hlídacího psa

Popis a parametry

Popis produktu

Thunderbolt 4 Certified 11-in-1 Docking StationAdopting Goshen Ridge solution
Slim compact aluminum design
Thunderbolt™ 4 Certified
Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions(ONLY M1 Pro- and Max Chip).
Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode, USB protocol
3x Thunderbolt™ 4 downstream ports, allow you to cascade Thunderbolt™ devices
3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)
3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K60Hz Max.
The maximum resolution for connecting a single monitor is also 8K30Hz.
Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices

TECHNICAL SPECIFICATIONS


 OS Support
• Windows10™ or above version supported Thunderbolt™ 4 host
• MacOS™ 11 or above version supported Thunderbolt™ 3 host(ONLY M1 Pro- and Max Chip)

 In the box
• CSV-1581 Thunderbolt™ 4 Certified 11-in-1 Docking Station
• Power Adapter 20V7.5A(150Watt)
• QIG, Quick Installation Guide

 Available Interfaces
Upstream: 1x
• Thunderbolt™ 4 USB Type-C Male (to host)
 Support max 96W, 5V/9V/15V@3A, 20V@4.8A Host charging
Downstream:
• 3x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™ 3, USB4, DP Alt mode, USB
• Allow you to cascade Thunderbolt™ devices
• Support max 8K30Hz or dual 4K60Hz video
• Each Thunderbolt™ 4 port supports 15W downstream charging for connected device
• 2x USB Gen2 x2 Type-A, Max. 10Gbps data transmission, downward compatible with lower versions, Max. 900mA downstream charging per port
• 1x USB Gen1 Type-A, Max. 480 Mbps data transmission
Memory Card Slots SD4.0/TF 3.0
• 1x SD supports SD4.0 with max 312Mbps
• 1x TF supports SD3.0 with max 104Mbps
 Support 2 card slots to work simultaneously
1x Ethernet RJ45
• Support Gigabit Ethernet,10M/100M/1000M
• Support Wake-On-LAN and Wake-On-WAN
• Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.
1x Audio JACK 3.5mm
• Stereo output supports 24-bit, 44.1/48/96kHz Sample Rate
• Microphone input supports up to 24bit 96kHz Sample Rate
1x DC Power Jack
• Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices
• Used to connect 20V 150W DC power supply. Compatible with 19V ~ 22V, 150W or higher power DC power supply
• Max 140W power for host and the DOCK
• Max 96W for host charging


 Other info
• Box size: 26.7 x 15 x 8.2 cm / 10.51 x 5.9 x 3.23"
• Dock dimensions: 19 x 8 x 2.2 cm / 7.48 x 3.15 x 0.86"
• Power Supply dimensions: 16 x 7.3 x 3.4 cm / 6.3 x 2.87 x 1.34"
• Power Cable Length approx.: 1.8 m / 6 ft
• Product Weight: 360 gr / 2.7 oz
• Power Supply Weight: 720 gr / 25.39 oz
• Box Weight: 171 gr / 6.03 oz
• Total Weight: 1251 gr / 44.12 oz
• Meets ROHS, FCC, and CE EMI requirements



Poznámka výrobce:

Club 3D je nizozemská značka specializující se na výrobu grafických karet a přídavných zařízení pro počítače a herní konzole. Firma byla založena v roce 1997 a má sídlo v Amsterdamu.

Club 3D získala několik ocenění za inovativní technologie a kvalitní výrobky, jako například ocenění Red Dot Award v roce 2017 za výrobek CAC-1085 DisplayPort 1.4 to HDMI 2.0a Active Adapter.

Stránky výrobce:

https://www.club-3d.com
