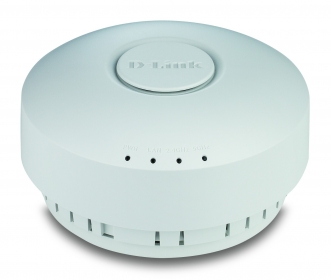

D-Link DWL-6610AP

Unified AC1200 Simultaneous Dual-Band PoE Access Point OVERVIEW * 1200Mbps Wireless LAN Indoor Access Point * Concurrent 2.4GHz/5GHz 802.11n (11a/g) Wireless Connectivity * 5GHz at 867Mbps 2Tx2R solution 11ac/a/n compatibility * 2.4GHz 300 Mbps 3Tx3R solution 11b/g/n compatibility * 1 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port * 1 x RJ-45 console port * Plenum rated metal housing * Operation Modes: Access Point (AP), Point-to* Point (PtP) Bridge, Point-to-MultiPoint (PtMP) Bridge1 * Autosenses & Adjusts Speed to conditions for Maximum Performance * Security Features - 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption - WPA/WPA2 - IEEE 802.1x - MAC Address Access Control - AES * Support 802.3af Power Over Ethernet * Web-based Configuration & Management * 2 internal 2.4GHz band Antennas * 2 internal 5GHz band Antennas Note: Draft specifications subject to change TECHNICAL SPECS Interfaces: * 802.11b/g/n 2.4 GHz wireless * 802.11ac 5 GHz wireless * One 10/100/1000 LAN port * RJ45 console port * Factory reset button * Power switch * Power connector Antenna : * Internal omnidirectional antennas * 6.5 dBi for 5 GHz, 5 dBi for 2.4 GHz Operating Channel : * 2.4 / 5 GHz * 11 channels for United States * 13 channels for Europe * 13 channels for Japan Web-based User Interface: * HTTP/HTTPS Command Line : * RJ45 Serial Console * Telnet/ SSH * SNMP SSID Security : * Up to 32 SSIDs, 16 per radio * 802.1Q VLAN * Station Isolation Wireless Security : * WPA Personal/ Enterprise * AES and TKIP Detection & Prevention : * Rogue and Valid AP Classification Authentication : * MAC Address Filtering Dimensions : * 158.79 x 69.39 mm Weight : * 500 grams (1.1 lbs) Power Adapter : * Input: 100 to 240 V AC * Output: 12 V DC, 2 A Power over Ethernet : * 10/100/1000 Mbps PoE (802.3at) input Power Method : * Powered by PoE or 12 V / 2 A Enclosure : * Bottom cover - plastic * Top cover - plastic * UL2043 certified chassis Temperature : * Operating: 0 to 40 °C * Storage: -20 to 65 °C Humidity : * Operating: 10% to 90% non-condensing Certifications : * CE * EN 301 893 V1.7.1 (2012-06) (DFS/TPC) * EN 300 328 V1.8.1 (2012-06) * FCC * IC * cUL * LVD * UL2043 (for plenum-rated SKU only) * C-Tick * BSMI * NCC * Wi-Fi
