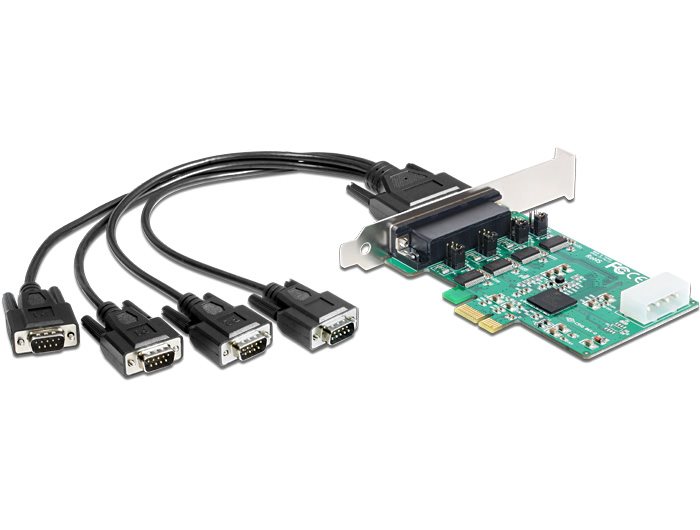

Delock PCIe řadič, 4x RS-232, High Speed 921K s napájecím napětím

The Delock PCI Express card expands your system by four High Speed RS-232 ports. Use this card for applications like data logging, machine control systems, automation, development or communication. By the extensive surge protection and the wide temperature range this card can be used in the industrial area. Connected devices can be supplied with voltage of 5 V or 12 V optionally.

Specifikace
• Chipset: Exar 17V354
• Connector:
external:
1 x Sub-D 44 Pin female
connecting cable: Sub-D 44 pin male > 4 x Serial RS-232 (9 pin male)
internal:
1 x PCI Express x1, V2.0
1 x 4 pin Molex power connector
• Baud rate: up to 921.6 Kb/s
• Compatible to 16C550 UART
• FIFO 256 Byte
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS / CTS, XON / XOFF
• Selectable voltage supply 5 V / 12 V or RI of pin 9
• Operating temperature: -30 °C ~ +75 °C
• Storage temperature: -40 °C ~ +85 °C
• Ambient relative humidity max. 95 % (non-condensing)
• 15 kV ESD protection for all signals
• I/O address and IRQ assigned by the system

Systémové požadavky
• Windows XP/XP-64/Vista/Vista-64/7/7-64,8, 8.1, 10 Linux ex Kernel 2.6
• PC with a free PCI Express slot
• Power supply with a free Molex power connector

Obsah balení
• PCI Express card
• Low profile bracket
• 1 serial connecting cable (ca. 30 cm)
• Driver CD
• User manual

Balení
• Box
