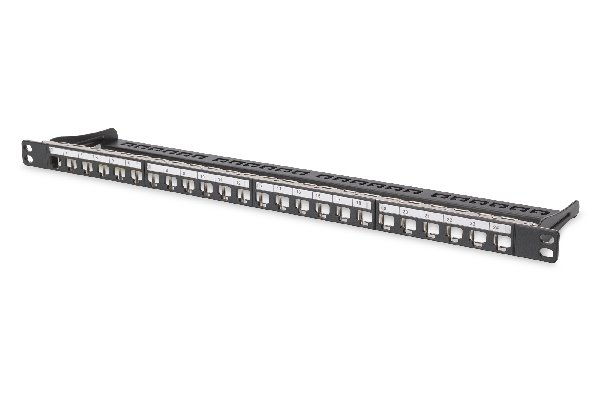

Digitus Modular Patch Panel, shielded 24-port, label field, 0.5U, rack mount, color black RAL 9005

DIGITUS Modular Patch Panel, shielded 24-port, label field, 0.5U, rack mount, color black RAL 9005

The DIGITUS® 24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed.


l  Layout Keystone Entry: Double-row l  Area of application: 19" cabinet l  Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C l  General properties: l  Suitable for 483 mm (19") cabinet mounting l  Suitable for shielded Digitus® Keystone Modules and Couplers l  Central ground connection l  Plastic label field l  Technical properties: l  Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated l  Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE l  Grounding bar material: Galvanized steel l  Grounding wire: 18 AWG, 40 cm l  Physical properties: l  Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) l  Category: CAT 6A l  Ports: 24 l  Color: black, RAL 9005
