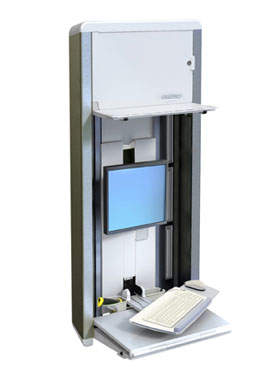

ERGOTRON StyleView® VL Enclosure, uzavíratelný flexibilní držák na zeď

ERGOTRON StyleView® VL Enclosure, uzavíratelný flexibilní držák na zeď, na PC, Monitor, klávesnici a myš.

Secure Equipment and Patient Data

Keyless locking mechanism protects patient data and aids in the compliance with privacy requirements like HIPAA

Separate locking storage for CPU

Premium Ergonomics

Nine-inch (229 mm) vertical adjustment of monitor and keyboard in tandem enhances ergonomics for multiple users

Slide-out keyboard tray extends an extra 5" (125 mm) and pans for comfortable data entry

Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry

Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability

Low profile—only 6.75" (17.2 cm) deep—and narrow width make it perfect for space-constrained areas

Easy to use: Quick, simple 4-step installation and effortless operation

Advanced open-architecture design supports future hardware upgrades

Cable management system conceals and organizes wires and cords

Extremely easy to clean; promotes infection control

Attractive design; hides clutter associated with computer equipment

Part Number: 60-595-062
Description: StyleView VL Enclosure (white and aluminum)
Includes wall plate, mounting template, enclosure, vertical lift, slide-out keyboard tray, wrist rest, mouse pouch, scanner holder, internal cable management, batteries, monitor mounting hardware, wall mounting hardware, keys
Easy 4-step installation: 1. Attach wall plate using template; 2. Hang enclosure; 3. Install computer; 4. Set keyless security code
* Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
† Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)
Nine inches (229 mm) of vertical adjustment ergonomically accommodates user heights ranging from the 5% female height to the average male height
Slide-out mouse tray includes built-in pad surface
Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored
Keyboard tray pans left/right up to 120°
Integrated mouse and scanner holders
Cable access openings allow cables to pass through top and bottom of enclosure
CPU compartment is top-vented for maximum CPU heat dissipation
Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
Accommodates most small form factor and ultra small form factor CPUs
Maximum CPU physical dimensions: 13.75" W x 12.75" H x 3.75" D (34.9 x 32.4 x 9.5 cm)
Maximum monitor physical dimensions: 20.7" W x 14.7" H x 2.75" D (52.6 x 37.3 x 7.0 cm)
Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
VESA hole pattern should be on center on back of monitor
Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Actual Product Dimensions: 27.2" W x 60.6 H x 6.75" D (closed) or 20.6" D (open)
(69 H x 154 H x 17 D or 53 D cm)
Shipping Dimensions: 65" x 31" x 11.5" (1651 x 787 x 292 mm)
Shipping Weight: 97 lbs (44.1 kg)
