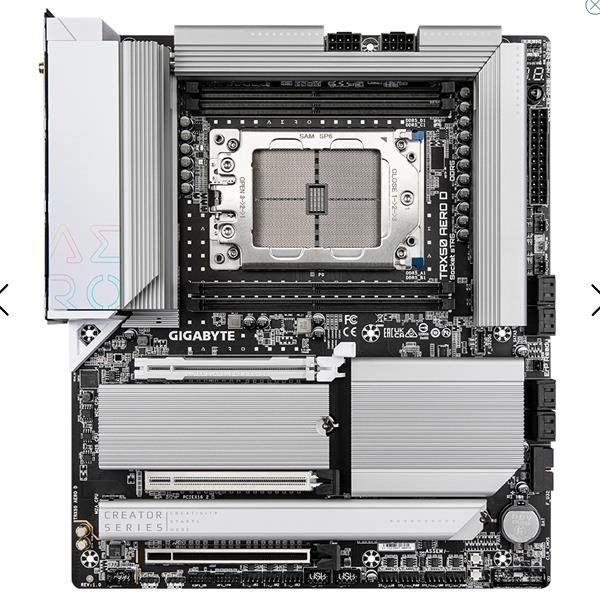

Gigabyte TRX50 AERO D

Procesor
   AMD Socket sTR5, support for:
   AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
   (Go to GIGABYTE's website for the latest CPU support list.)

Čipset
   AMD TRX50

Paměť
   Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
   4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
   Quad channel memory architecture
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Zvuk
   Realtek® ALC4080 CODEC (rear panel audio)
   - Support for DTS:X® Ultra
   - High Definition Audio
   - 2-channel
   Realtek® ALC897 CODEC (front panel audio)

LAN
   Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
   Bezdrátový komunikační modul
   Qualcomm® Wi-Fi 7 QCNCM865
   - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11be 320MHz wireless standard

Rozšiřující sloty
   CPU:
   - 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Rozhraní pro ukládání dat
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
   - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
   CPU+Chipset:
   - 8 x SATA 6Gb/s connectors
   RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
   CPU:
   - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   Chipset+Intel® JHL8540 USB4® controller:
   - 2 x USB4® USB Type-C® ports on the back panel
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 2 x USB 3.2 Gen 1 ports available through the internal USB header
   CPU+USB 3.2 Gen 1 Hub:
   - 4 x USB 3.2 Gen 1 ports on the back panel
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports available through the internal USB headers

Interní konektory
   1 x 24-pin ATX main power connector
   2 x 8-pin ATX 12V power connectors
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   4 x system fan headers
   4 x system fan/water cooling pump headers
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   4 x M.2 Socket 3 connectors
   8 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x noise detection header
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x power button
   1 x Clear CMOS button
   1 x reset button
   1 x reset jumper
   2 x temperature sensor headers
   1 x Clear CMOS jumper

Konektory na zadním panelu
   1 x Q-Flash Plus button
   2 x SMA antenna connectors (2T2R)
   1 x DisplayPort In port
   1 x USB4® USB Type-C® port (DisplayPort)
   1 x USB4® USB Type-C® port
   4 x USB 3.2 Gen 2 Type-A ports (red)
   4 x USB 3.2 Gen 1 ports
   2 x RJ-45 ports
   2 x audio jacks

I / O řadič
   iTE® I/O Controller Chip

Monitorování HW
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control
   Noise detection

BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unikátní vlastnosti
   Support for GIGABYTE Control Center (GCC)
   Support for Q-Flash
   Support for Q-Flash Plus

Přiložený software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software

Operační systém
   Support for Windows 11 64-bit

Velikost
   E-ATX Form Factor; 30.5cm x 26.4cm
