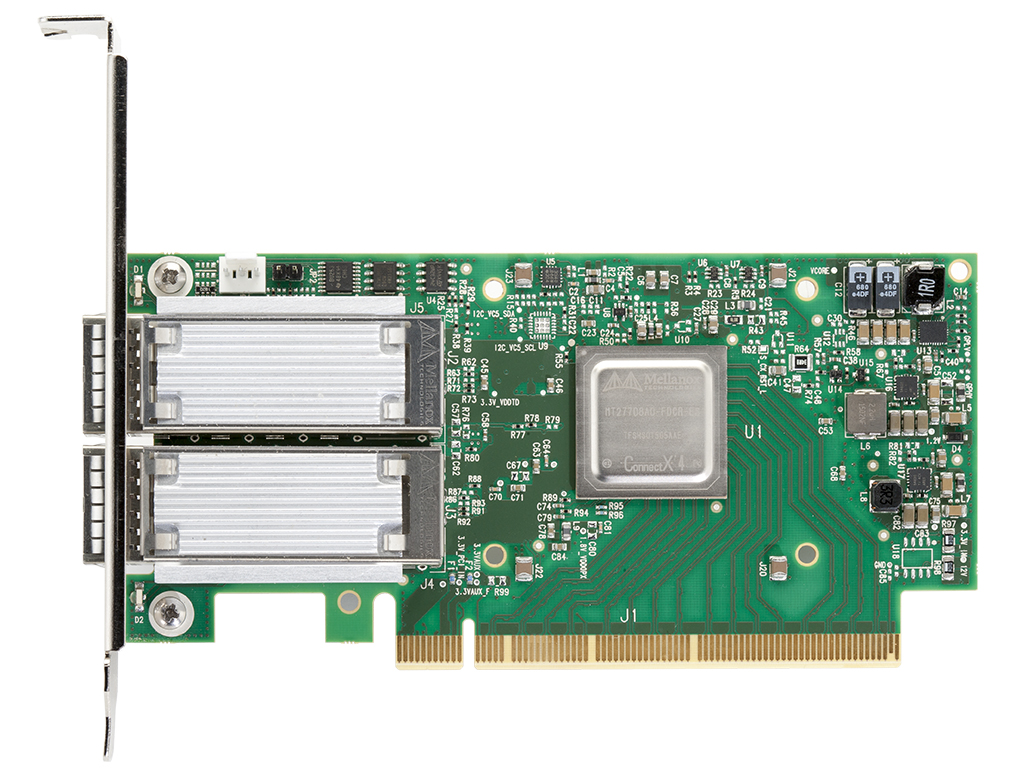

Mellanox ConnectX®-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6

ConnectX-5 EN supports two ports of 100Gb Ethernet connectivity, sub-600 ns latency, and very high message rate, plus PCIe switch and NVMe over Fabric offloads, providing the highest performance and most flexible solution for the most demanding applications and markets: Machine Learning, Data Analytics, and more.

HPC Environments

ConnectX-5 delivers high bandwidth, low latency, and high computation efficiency for high performance, data intensive and scalable compute and storage platforms. ConnectX-5 offers enhancements to HPC infrastructures by providing MPI and SHMEM/PGAS and Rendezvous Tag Matching offload, hardware support for out-of- order RDMA Write and Read operations, as well as additional Network Atomic and PCIe Atomic operations support.

ConnectX-5 EN utilizes RoCE (RDMA over Converged Ethernet) technology, delivering low-latency and high performance. ConnectX-5 enhances RDMA network capabilities by completing the Switch Adaptive-Routing capabilities and supporting data delivered out-of- order, while maintaining ordered completion semantics, providing multipath reliability and efficient support for all network topologies including DragonFly and DragonFly+.

ConnectX-5 also supports Burst Buffer offload for background checkpointing without interfering in the main CPU operations, and the innovative transport service Dynamic Connected Transport (DCT) to ensure extreme scalability for compute and storage systems.


Review the Product Brief: ConnectX-5 EN Ethernet Adapter Cards

• Manufacturer: Mellanox Technologies Ltd
• Manufacturer Part Number: MCX516A-CCAT
• Manufacturer Website Address: http://www.mellanox.com
• Brand Name: Mellanox
• Product Line: ConnectX-5 EN
• Product Model: MCX516A-CCAT
• Product Name: ConnectX-5 EN MCX516A-CCAT 100Gigabit Ethernet Card
• Product Type: 100Gigabit Ethernet Card

• Host Interface: PCI Express
• Total Number of Ports: 2

• Expansion Slot Type: QSFP

• Media Type Supported: Optical Fiber

• Network Technology: 100GBase-X

• Form Factor: Plug-in Card
• Width: 5.6"
• Depth: 2.7"

• Device Supported: Server
• Environmentally Friendly: Yes
• Environmental Certification: RoHS-6
