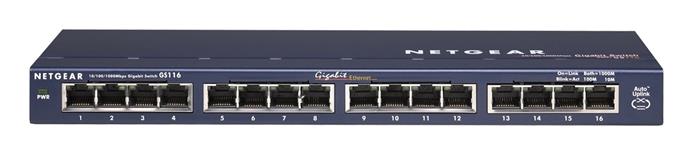

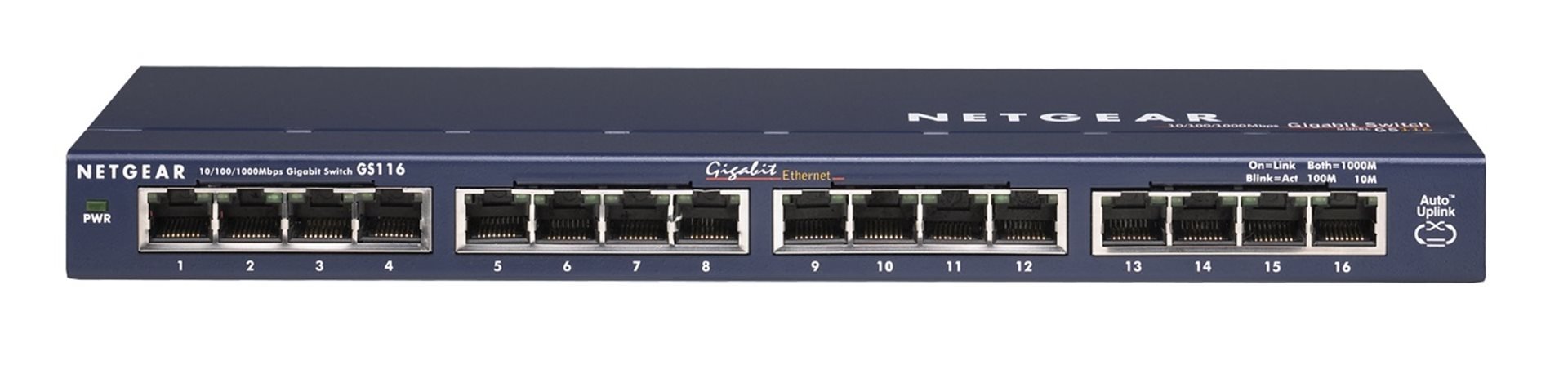

Netgear 16x 10/100/1000 Ethernet Switch

NETGEAR - PROSAFE 16 PORT GIGABIT DESKTOP SWITCH
PROSAFE 16 PORT GIGABIT DESKTOP SWITCH

GS116

16 high-speed, auto-sensing 10/100/1000 Mbps Ethernet connections

Integrates 10, 100, & 1000 Mbps devices within a network

Silently delivers up to 2000 Mbps on each

Physical Specifications
Dimensions (h x w x d): 27 x 285 x 103 mm (1.06 x 11.22 x 4.06 in)
Weight: 0.9 kg (2 lbs)
Network Ports

16 RJ-45 auto-sensing UTP ports

Forwarding Mode
Store-and-Forward

Performance
Bandwidth: 32 Gbps (non-blocking)
Forward rate (100 Mbps port): 148,000 packet per sec
Forward rate (1000 Mbps port): 1,488,000 packet per sec
Latency (1000 to 1000 Mbps): 10 µs (max)
Queue Buffer Memory: 512 Kbytes per port
Acoustic Noise: 0 dB
Heat Dissipation: 38.8 BTU/hr
AC Power

18 W max and 12 V @ 15 A DC input
Status LEDs

Link and speed indicators built into each RJ-45 port

Environmental Specifications
Operating temperature: 0 to 40o C (32 to 104° F)
Operating humidity: 10% to 90% noncondensing

Safety Agency Approvals
CE Mark, Commercial UL listed (UL 1950)
C-Tick

Electromagnetic Compliance
CE mark, commercial
FCC Part 15 Class A
EN 55022 (CISPR 22)
Class A VCCI
Class A C-Tick

Standards Compliance
IEEE 802.3i 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Honors 802.1p priority tags
Honors DSCP priority tags
