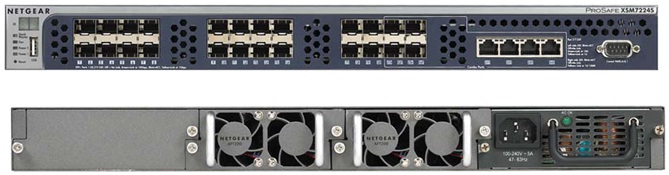

Netgear XSM7224S, 24x10Gig , L2+, Managed switch

* Purposely built for virtualization and distributed LACP * Top-of-Rack: stackable solution for Active-Active server teaming * Aggregation and Core scalability with L3 licensing The NETGEAR ProSafe 10 Gigabit Stackable Managed Switch, XSM7224S, allows for a flexible top-of-rack infrastructure. All 24 ports of 10 Gigabit SFP+ interfaces are Gigabit/10 Gigabit capable and deliver wired speed performance with ultra low latency. Four shared 10GBase-T interfaces broaden 10 Gigabit connectivity with auto-sensing RJ45. Local/distant stacking provides versatile 10 Gigabit deployment possibilities, such as Distributed (LACP) Aggregation for virtualized servers and storage. Enterprise-class L2+ Combining superior resiliency, enterprise-class security, and non-blocking performance, the XSM7224S offers a full set of Layer 2 management features, as well as Layer 2+ (Layer 3 lite – IPv4 routing) with unsurpassed affordability. Together with VLAN routing, voice-class prioritization, and chassis-like stacking, the XSM7224S can be deployed as a data center Top-of-Rack switch, or closer to the core of small and medium businesses’ growing networks, as a distribution layer 10 Gigabit Ethernet aggregation switch. L3 Scalability (available in Q1 2011) The Layer 3 upgrade license XSM7224L unlocks the IPv4/IPv6 dynamic routing capabilities of the XSM7224S. Purposely built for Enterprise networks and core / aggregation layers of SMB networks, an L3 upgraded XSM7224S provides advanced routing protocols such as OSPF, VRRP, and multicast for converged applications. Data Center Availability The NETGEAR Stackable, Managed 10 Gigabit Switch XSM7224S comes with a removable power module for the main power supply with a second internal redundant power supply available as an option. Two removable fan trays increase the availability of the system, providing front-to-back cooling airflow for best compatibility with data center hot aisle / cold aisle airflow patterns. Like all NETGEAR ProSafe Managed Switches, the XSM7224S is backed by the NETGEAR ProSafe Lifetime Warranty. Modules & Accessories: AGM731F 1000BASE-SX SFP GBIC AGM732F 1000BASE-LX SFP GBIC AGM734 1000BASE-T RJ45 SFP GBIC AXC753 3m SFP+ to XFP Direct Attach Cable AXC761 1m SFP+ Direct Attach Cable AXC763 3m SFP+ Direct Attach Cable AXM761 10GBASE-SR SFP+ GBIC AXM762 10GBASE-LR SFP+ GBIC AXM763 10GBASE-LRM SFP+ GBIC (Long Reach Multimode) APS300W ProSafe Auxiliary Power Supply AFT200 ProSafe Auxiliary Fan Tray Specifikace: Physical Interfaces Front 24 x 10 Gigabit SFP+ ports All SFP+ ports support 1000 Mbps/10 GE speed 4 shared RJ45 auto-sensing 10GBaseT ports All RJ45 ports support 100 Mbps/1000 Mbps/10 GE speed USB port (config/firmware files storage) Serial RS-232 port for console Total 24 x 10 Gigabit ports Processor/Memory Multi-core processor: Cavium CN5230-750 @ 750 MHz ( four cores) System runtime memory: 512 MB (DDR2 SDRAM) Bootram: 32-bit 8 MB flash Packet buffer memory: 16 Mb per switch Code storage (flash): 128 MB Hardware Stacking Stack height: 4 switches 4 ports used per switch All 24-port are stack-capable Shared RJ45 10GBaseT ports are also stack-capable Local stacking (copper) and distant stacking (fiber) possible mix and match Stacking performance: 80 Gbps (full duplex) Performance Summary Switching fabric: 480 Gbps Throughput: 357 Mpps Forwarding mode: Store and Forward Latency (64-byte frames, 1 Gbps): <4.1µs Latency (64-byte frames, 10 Gbps): < 1.59 µs Addressing: 48-bit MAC address Address database size: 32,000 MAC addresses Number of VLANs: 1,024 (IEEE® 802.1Q) Number of multicast groups filtered (L2): 1K Number of trunks: 64 trunks, 8-port per trunk Number of hardware queues for QoS: 8 Number of ACLs: 100 ACLs and 16,384 rules (supporting both ingress and egress ACL) ARP table: 6,144 Number of static routes: 64 Number of IP interfaces: 128 Number of Spanning Tree: 32 Jumbo frame support: up to 9 K packet size Acoustic noise (ANSI-S10.12): 44 dB @ 25° C ambient temperature Heat dissipation: 666.42 Btu/hr Mean time between failures (MTBF): 180,178 hours (~20.5 years) @ 25° C and 68,419 hours (~ 7.8 years) @ 55° C ambient temperature L3 Services – Routing L2+ static routing (subnets, VLANs) 64 static IP routes 128 IP interfaces IP Source Guard L3 Services - DHCP DHCP server (1,024 clients) DHCP L2 relay DHCP Snooping (32K bindings) Services - Multicast IGMP querier Services – Switching MAC address table: 32,000 ARP cache size: 6,144 Proxy ARP Dynamic ARP Inspection L2 Services – VLANs IEEE 802.1Q static VLAN (up to 1,024 VLANs) IEEE 802.1v Protocol VLAN Port-based VLAN MAC-based VLAN IP subnet-based VLAN Protocol-based VLAN Voice VLAN (based on IP phones OUIs) Guest VLAN with IEEE 802.1x Auto-VLAN assignment via RADIUS IEEE 802.1 Q-in-Q (Double-VLAN tagging) GARP with GVRP/GMRP (automatic registration for membership in VLANs or in multicast groups) Private groups L2 Services - Availability IEEE 802.3ad Link Aggregation (Static or LACP) up to 64 trunks per stack and up to 8 ports per trunk 802.1AX-2008 User selectable LAG hashing algorithm (seven) for Load-Balancing IEEE 802.1D Spanning Tree Protocol (max 32 Spanning Trees) IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree L2 Services – Multicast IGMP v1, v2, v3 snooping support IGMP querier mode support Static multicast filtering (1,000 multicast groups) L2/L3/L4 Services – QoS IPv4/IPv6 L2/L3/L4 QoS: MAC, IP, TCP/UDP ports IEEE 802.1p Class of Service (CoS) DiffServ QoS (RFC 2998) Weighted round robin (WRR) queue technology Strict priority queue technology Ingress rate limit in 1 Kbps increments Ingress and egress traffic WRED (Weighted random early detection) queue management algorithm L2/L3/L4 Services – Security IPv4/IPv6 Access control lists (ACL) L2/L3/L4: MAC, IP, TCP MAC-based source/destination ACL IP subnet-based source/destination ACL Protocol-based source/destination ACL ACL over VLAN Dynamic ACL's Time ACL 100 ACL's and 16,384 rules Ingress and egress ACL Network storm protection including broadcast multicasts and unicast traffic DoS configurable protection End-to-end flow control (stand alone mode - not accross the stack) Service-aware flow control Data Center Mode flow control ICMP throttling Protected ports Port locking MAC filtering Port security DHCP snooping IP Source Guard Dynamic ARP inspection RADIUS (RFC 2865) RADIUS accounting (RFC 2866) IEEE 802.1x port access authentication (RADIUS) Network access control: Captive portal with internal authentication or external RADIUS authentication Possible configuration of 10 captive portals TACACS+ AAA IAS Users LLPF (Link Layer Protocol Filtering) IP Address Conflict Detection IEEE Network Protocols IEEE 802.3 Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ad Trunking (LACP
