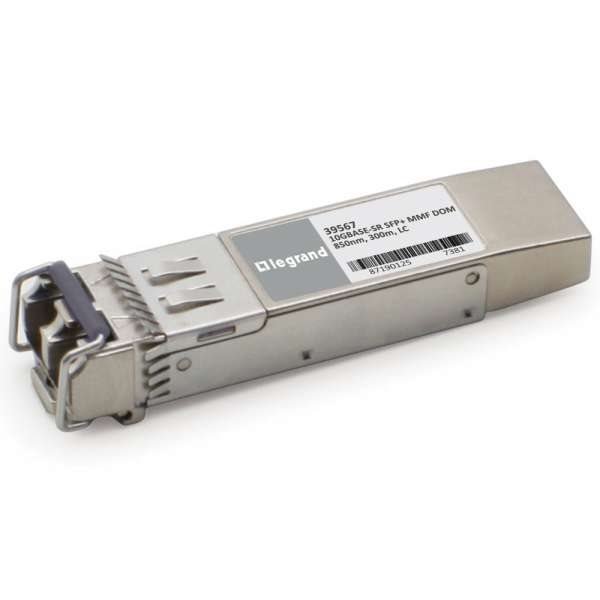

OEM 10G SFP+ LC SR Transceiver - kompatibilní s HP J9150D

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 300 m on multimode fiber.

Ports:
1 LC 10-GbE port (IEEE 802.3ae Type 10GBASE-SR)
Duplex: full only

Connectivity:
Connector type: LC
Wavelength: 850 nm

Electrical characteristics:
Power consumption typical: 0.6 W
Power consumption maximum: 0.8 W

Cable type:
62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively

Maximum distance:
2-26m with 62.5 µm multimode cable @ 160 MHz*km
2-33m with 62.5 µm multimode cable @ 200 MHz*km
2-66m with 50 µm multimode cable @ 400 MHz*km
2-82m with 50 µm multimode cable @ 500 MHz*km
2-300m with 50 µm multimode cable @ 2000 MHz*km

Cable length: 2-300m

Fiber type: Multi Mode

Notes:
For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended.

Compatible products:
• HP 2910 al Switch Series
• HP 8200 zl Switch Series
• HP 3500 yl Switch Series
• HP 6600 Switch Series
• HP 5400 zl Switch Series
