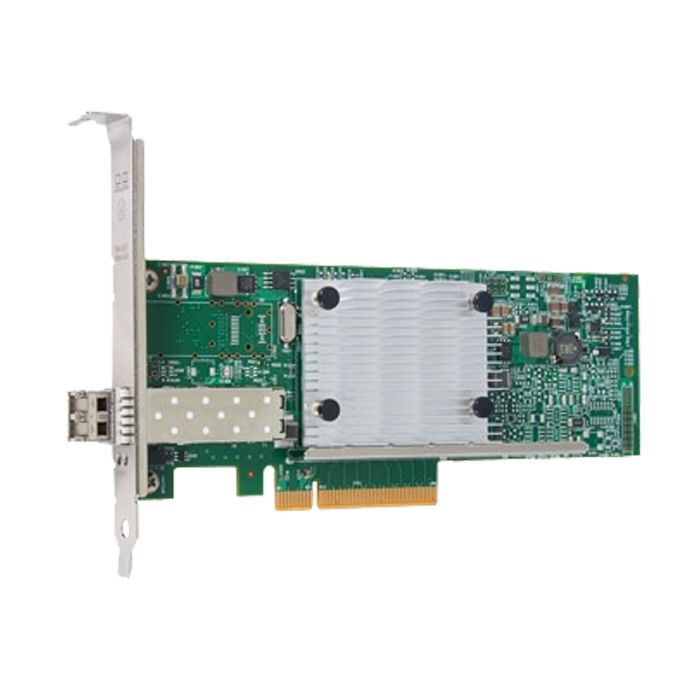

QLOGIC Single port PCIe Gen3 to 10Gb CNA Direct Attach Copper Adapter

The QLogic® 8400 Series Converged Network Adapters support simultaneous LAN (TCP/IP) and SAN (Fibre Channel over Ethernet [FCoE] and iSCSI) traffic at 10Gbps Ethernet (GbE) line rate speeds. The 8400 Series Adapter provides extremely low host CPU usage by enabling full hardware offloads.

*    PCI Express Gen3 x8
*    Delivers full line-rate 10GbE performance across both ports
*    Industry-leading storage (FCoE and iSCSI) transactional performance
*    Enables provisioning of 10GbE ports for greater deployment flexibility through switch-independent NIC partitioning (NPAR)
*    Boosts host CPU efficiency with hardware offloads for NVGRE and VXLAN tunnels
*    Improves reliability and interoperability—leverages QLogic’s market-proven Ethernet architecture and software
*    Network boot support:
-        iSCSI remote boot
-        FCoE boot from SAN
-        Pre-execution environment (PXE) 2.0
*    PCI-SIG® single root input/output virtualization (SR-IOV)
*    Data center bridging (DCB)
*    Low-profile PCIe form factor


QLogic 8400 Series

Host Bus Interface Specifications
Bus Interface
•
PCI Express Gen3 x8 (x8 physical connector)
Host Interrupts
•
MSI-X supports independent queues
I/O Virtualization and Multitenancy
•
SR-IOV
•
Switch-independent NIC partitioning
•
Generic routing encapsulation (NVGRE) packet task
offloads
•
Virtual Extensible LAN (VXLAN) packet task offloads
Compliance
•
PCI Base Specification
, rev. 3.0
•
PCI Bus Power Management Interface Specification
,
rev. 1.2
•
Advanced configuration and power interface
(ACPI) v2.0
Ethernet Specifications
Throughput
•
10Gbps line rate per port
Ethernet Frame
•
1,500 bytes and larger (jumbo frame)
Stateless Offload
•
TCP segmentation offload (TSO)
•
Large send offload (LSO)
•
Large receive offload (LRO)
•
Giant send offload (GSO)
•
TCP and user datagram protocol (UDP) checksum
offloads
•
Receive segment coalescing (RSC)
•
Interrupt coalescing
•
RSS and TSS
•
VMware NetQueue, Microsoft VMQ, and Linux
Multiqueue
Compliance
•
IEEE 802.3ae (10Gb Ethernet)
•
IEEE 802.1q (VLAN)
•
IEEE 802.3ad (Link Aggregation)
•
IEEE 802.3x (Flow Control)
•
IPv4 (RFC 791)
•
IPv6 (RFC 2460)
•
IEEE 802.1Qbb (Priority-Based Flow Control)
•
IEEE 802.1Qaz (data center bridging exchange
(
DCBX) and enhanced transmission selection [ETS])
FCoE Specifications
Performance
•
2.6 million FCoE IOPS (QLE8442)
iSCSI Specifications
Performance
•
1.5 million iSCSI IOPS (QLE8442)
Tools and Utilities
Management Tools and Device Utilities
•
Advanced Control Suite™ (ACS)
•
Native OS management tools for networking
Boot Support
•
iSCSI remote boot
•
FCoE boot from SAN
•
PXE 2.0
Operating System Support
•
For the latest applicable operating system
information, see
http://driverdownloads.qlogic.com
Physical Specifications
Ports
•
QLE8440: single 10Gbps Ethernet
•
QLE8442: dual 10Gbps Ethernet
Form Factor
•
PCI Express short, low-profile card:
167.64mm × 68.91mm (6.60in. × 2.71in.)
Agency Approvals—EMI and EMC1
US and Canada
•
FCC Rules,CFR Title 47, Part 15, Subpart B:2013
Class A
•
Industry Canada, ICES-003:2012 Class A
Europe
•
EN55022:2010/CISPR 22:2009+A1:2010 Class A
•
EN55024:2010
•
EN61000-3-2:2006 A1+A2:2009
•
EN61000-3-3:2008
Japan
•
VCCI:2012-04; Class A
1
Agency certifications are pending.
Australia and New Zealand
•
AS/NZS; CISPR 22:2009+A1:2010 Class A
Korea
•
KC-RRA KN22 KN24(2013) Class A
Agency Approvals—Safety
1
US and Canada
•
UL 60950-1 (2nd Edition) 2007
•
CSA C22.2 No.60950-1-07 (2nd Edition) 2007
Europe
•
TUV EN60950-1:2006+A11+A1+A12 2nd Edition
•
TUV IEC 60950-1:2005 2nd Edition Am 1:2009 CB
Environmental and Equipment Specifications
Temperature
•
Operating: 32°F to 131°F (0°C to 55°C)
•
Storage: –40°F to 149°F (–40°C to 65°C)
Airflow
•
QLE8440 and QLE8442: 200LFM
Humidity (Relative, Non-condensing)
•
Operating and non-operating: 10% to 90%
Power
•
QLE8440-CU/-SR: 7.1 watts (nominal)
•
QLE8442-CU/-SR: 7.65 watts (nominal)
