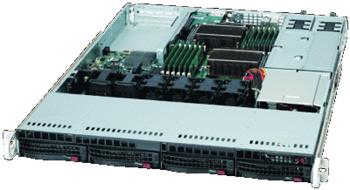

Supermicro CSE-815TQC-605WB

SAS3 12Gb/s Technology 1. 4x 3.5" Hot-swap SAS3/SATA Drive Bays 2. 600W High-efficiency Power Supply Platinum Level Certified 3. 1x Slim DVD-ROM Drive (optional) 4. 4x 4cm Counter-rotating PWM fans 5. 2x Full-height I/O Expansion slots &? 1x Low-profile I/O Expansion slot 6. Power Switch, Reset, UID Button & 5 LED Indicators 7. Optimize for WIO (W series) MB 8. Quick release rail set Form Factor 1U chassis for motherboard support size of Proprietary 12.3" x 13", Proprietary 8.15" x 13.05" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 25.6" (650mm) Gross Weight 36 lb (16.33 kg) Packaging 23.5'' (W) x 8.5''(H) 33.7'' (L) Available Color black Expansion Slots Without Universal I/O (UIO) Card: •2 full-height & full-length expansion slot(s) •1 low-profile expansion slot(s) Drive Bays Internal Bay • 4x 3.5" Hot swap SAS/SATA • SAS or enterprise SATA HDD only recommended Backplane •1U SAS/SATA Backplane with SES2 support •SAS3 12Gb/s support Front Panel Buttons • Power On/Off button • System Reset Button • Unit Identification (UID) button LEDs • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED • Unit Identification (UID) LED Motherboard(s) for CSE-815TQC-605WB System Cooling Fans 4x 40x56mm PWM fan Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching AC Input 100-240V, 50-60Hz, 7.5A max DC Output +3.3V: 15A +5V: 18A +5V standby: 3A +12V: 49A -12V: 0.5A Certification Platinum Level Certified Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
