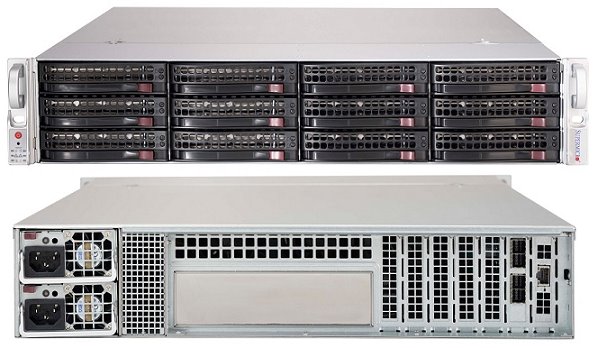

Supermicro CSE-826BE2C-R741JBOD

Cloud Backup, Data Replication, or High Density Archive Storage Applications 1. 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays 2. Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput 3. 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements 4. 1x IPMI port for Remote System Power on/off and system monitoring 5. Support NTP for time synchronization & RTC battery backup 6. 740W (1+1) 95% efficient Platinum level power supplies 7. 3 x 80mm high efficient hot-swappable fans for best system cooling 8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications Product SKUs CSE-826BE2C-R741JBOD SuperChassis 826BE2C-R741JBOD Form Factor 2U JBOD storage chassis Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Net Weight 55 lbs (24.95 kg) Gross Weight 60 lbs (27.22 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Drive Bays 12 x 3.5" hot-swap drive bay Backplane 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 1 Network Activity LEDs Systems Cooling Fans 3 x 80x38mm hot-swap cooling fan(s) System Monitoring IPMI Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 740W Redundant Platinum Power Supply W/PMbus Power Efficiency 94% Total Output Power and Input 740W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 61.7A / Min: 0.2A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT826-8824 O/P: 12V/135A +5V Max: 40A +3.3V Max: 24A -12V Max: 0.6A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC FCC class A TUV/CB UL/CUL
