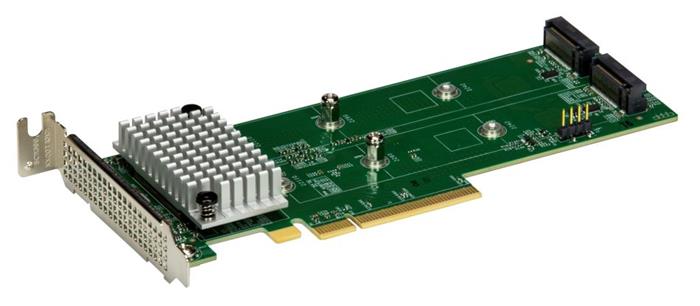

Supermicro AOC-SLG4-2H8M2 - RAID karta pro 2x M.2 2280/22110 (PCIe/SATA)

•    Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
•    Broadcom SAS3808 I/O RAID Controller
•    PCIe 4.0 x8 interface
•    Dual M-Key sockets (for 2x M.2 SSD)
•    Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
•    Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
•    Supports RAID 0 and RAID 1
•    Support MCTP over PCIe/ I2C
•    Support BMC-enabled management
•    Support secure erase
•    Support hardware secure boot
•    Support on-board LEDs for SSD Activity and Status
•    UEFI Configuration utility
•    OS Support: Windows, Linux, and VMWare
•    Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
•    Thermal operating range: System dependent (55°C or higher w/ enough airflow)


Servers/Serverboards:
AS -1014S-WTRT
AS -1124US-TNRP
AS -2014CS-TR
SYS-1029U-TR25M
SYS-110P-WTR
SYS-120U-TNR
SYS-510P-M
SYS-510P-WTR
SYS-610U-TNR
SYS-730A-I
SYS-740A-T
H11DST-B
H12DST-B
H12DSU-iN
H12DSU-iNR
H12SST-PS
H12SSW-iNR
H12SSW-NT
H12SSW-NTR
X11DPH-I
X11DPH-T
X11DPH-TQ
X11DPU
X11SPH-nCTF
X11SPH-nCTPF
X11SPW-CTF
X11SPW-TF
X12DPI-N6
X12DPI-NT6
X12DPU-6
X12SPO-F
X12SPW-F
