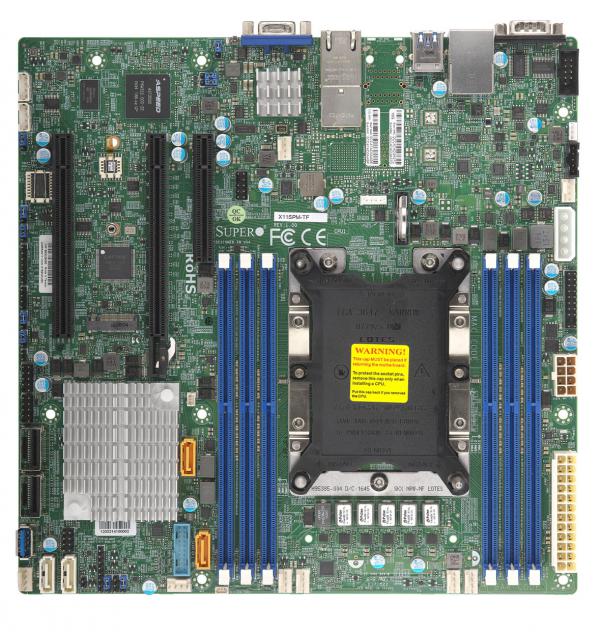

Supermicro MBD-X11SPM-TF-O

Key Features

*    Intel® Xeon® Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 165W
*    Intel® C622 chipset
*    Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
*    Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
*    2 10GbE LAN ports
*    12 SATA3 (6Gbps) via C622
*    Supports 12V DC power input
*    4-pin Internal power connector
*    5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
*    I/O: 1 VGA, 2 COM, TPM header

Physical Stats
Form Factor

   microATX

Dimensions

   9.6" x 9.6" (24.38cm x 24.38cm)


Processor/Cache
CPU

   Intel® Xeon® Processor Scalable Family.
   Single Socket P (LGA 3647) supported, CPU TDP support 165W

Cores / Cache

   Up to 28 cores


System Memory
Memory Capacity

   6x 288-pin DDR4 DIMM slots
   Up to 768GB ECC 3DS LRDIMM
   Up to 384GB ECC LRDIMM
   Up to 192GB ECC RDIMM

Memory Type

   2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM

DIMM Sizes

   RDIMM: 4GB, 8GB, 16GB, 32GB
   LRDIMM: 32GB, 64GB
   3DS LRDIMM: 64GB, 128GB

Memory Voltage

   1.2V

Error Detection

   Corrects single-bit errors


On-Board Devices
Chipset

   Intel® C622

SATA

   Intel® C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

   ASPEED AST2500

Network Controllers

   Dual LAN with 10GBase-T with Intel® X557

Graphics

   Aspeed AST2500 BMC


Input / Output
USB

   6 USB 2.0 ports (2 rear + 4 via header(s)),
   5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)

Video Output

   1 VGA port(s)

Serial Port / Header

   2 COM Ports (1 rear, 1 header(s))

TPM

   TPM Header
Expansion Slots
PCI-E

   2 PCI-E 3.0 x16,
   1 PCI-E 3.0 x8

M.2

   Interface: PCIe 3.0 x4
   Form Factor: 2242, 2280


System BIOS
BIOS Type

   AMI UEFI

BIOS Features

   ACPI 6.0
   RTC (Real Time Clock) Wakeup
   SMBIOS 3.0 or late


Management
Software

   Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations

   ACPI Power Management
   Power-on mode for AC power recovery


PC Health Monitoring
Voltage

   +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT

FAN

   8x 4-pin fan headers (up to 8 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control

Temperature

   CPU thermal trip support
   PECI

LED

   CPU / System Overheat LED
   UID/Remote UID
   Suspend static indicator LED

Other Features

   ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL


Operating Environment
Operating Temperature Range

   0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range

   -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

   10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range

   10% ~ 95% (non-condensing)
