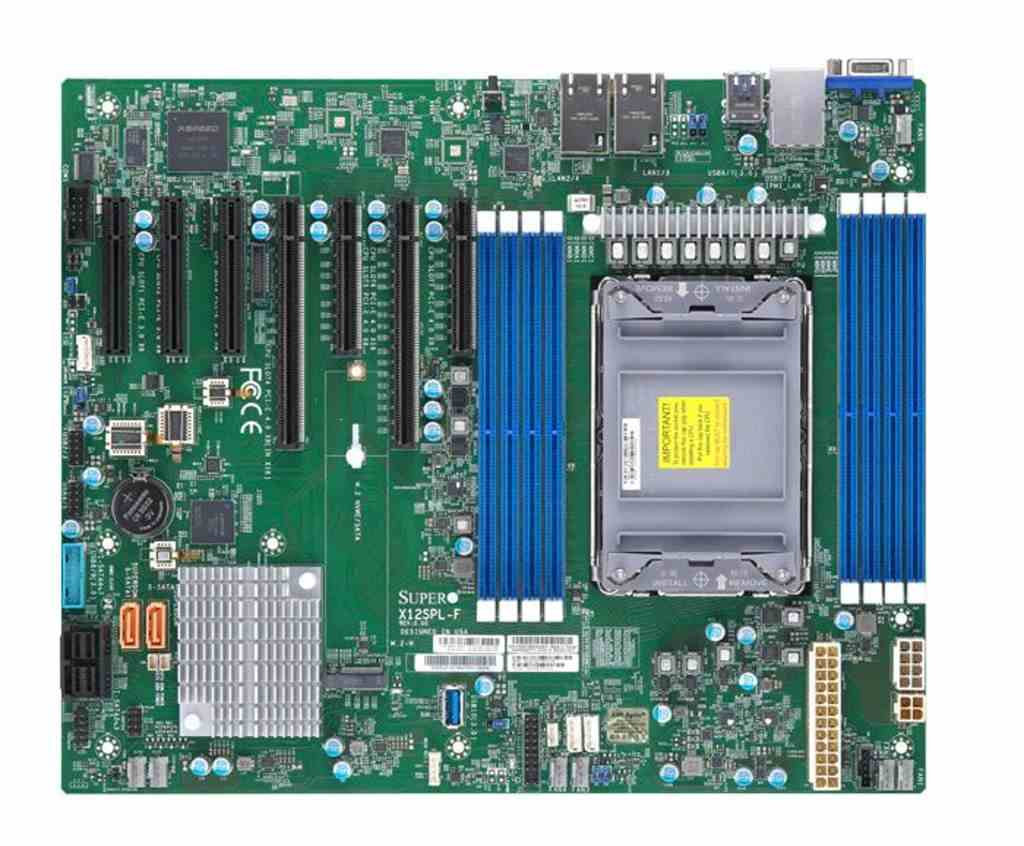

Supermicro MBD-X12SCZ-F-O

MBD-X12SPL-F  X12SPL-F



Physical Stats

Form Factor ATX

Dimensions 12.1" x 10" (30.73cm x 25.4cm)



Processor/Cache

CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Cores / Cache Up to 40 cores



System Memory

Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots

Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C621A

SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2600 BMC

Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller

Graphics ASPEED AST2600 BMC



Input / Output

SATA 10 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header







Expansion Slots

PCI-E 2 PCI-E 4.0 x8,
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot)3 PCI-E 3.0 x8

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT

Temperature PECI, CPU thermal trip support

LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, RoT, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
