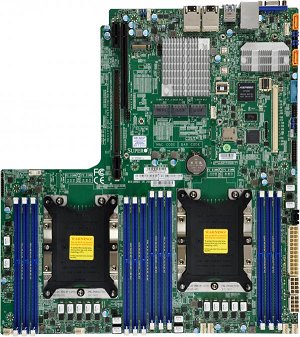

SUPERMICRO MB 2xLGA3647, iC621, 12x DDR4 ECC, 14xSATA3, 1xM.2, PCI-E 3.0/1,1,1(x32,x16,AOM),2x LAN,IPMI, WIO

Key Features Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Intel® C621 Up to 1.5TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) M.2 Interface: PCIe 3.0 x4 M.2 Form Factor: 2260 M.2 Key: M-Key 1 VGA port(s) Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Dual LAN with GbE from C621 Physical Stats Form Factor 12.3" x 13.4" Dimensions 12.3" x 13.4" (31.24cm x 34.04cm) Processor/Cache CPU Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s System Memory Memory Capacity Up to 1.5TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with GbE from C621 Graphics Aspeed AST2500 BMC Input / Output USB 6 USB 3.0 ports (4 rear + 2 via header(s)) Video Output 1 VGA port(s) Serial Port / Header TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) M.2 Interface: PCIe 3.0 x4 Form Factor: M-Key 2260 System BIOS BIOS Type UEFI 256M Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5+1 Phase-switching voltage regulator, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, PWM fan speed control, Thermal control tachometer fan connectors Temperature CPU thermal trip support LED CPU / System Overheat LED UID/Remote UID Other Features Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID
