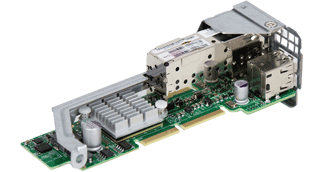

SUPERMICRO MicroLP 10 GbE LAN card, Port: 2x SFP+ and 2x USB 2.0 ports,micro LP -PCI-E 2.0

Add-on Card


Compact and Powerful Dual-port 10 Gigabit Ethernet Adapter

The AOC-CTG-i2S 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. Based on the Intel® 10GbE network controller 82599ES, the AOC-CTG-i2S addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance. The AOC-CTG-i2S is designed in a small microLP form factor to fit Supermicro MicroCloud and Twin server systems.


This product is only available through Supermicro.
To order, contact your distributor.


Key Features


• Dual SFP+ Connectors
• MicroLP Form Factor
• PCI Express 2.0 (up to 5GT/s)
• Intel® QuickData Technology
• VMDq, Next-Generation VMDq, and
• PC-SIG SR-IOV for Virtualized Environments
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE) Support
• Support for most Network Operating Systems (NOSs)
• Supports both DAC Twin Axial and LC Fiber-Optic SR Cables
• RoHS compliant 6/6

Specification


• General
  - Intel® 82599ES 10GbE controller
  - Compact size microLP form factor
  - Dual SFP+ and dual USB 2.0 ports
  - PCI-E x8 2.0 (5GT/s)
  - Load balancing on multiple CPUs
  - iSCSI remote boot support
  - Fibre Channel over Ethernet (FCoE) Support
  - Intel® PROSet Utility for Windows® Device Manager

• I/O Features
  - Intel® QuickData Technology: DMA engine that enhances data
    acceleration and lowers CPU usage
  - Direct Cache Access (DCA) to avoid cache misses
  - MSI-X support to minimize the overhead of interrupts allowing
    load-balancing between multiple cores/CPUs
  - Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities
    (IPv4, IPv6)
  - Receive and Transmit Side Scaling for Windows environments
    and Scalable I/O for Linux environments

• Virtualization Features
  - Supports virtualization features such as VMDq, Next-gen.
    VMDq (64 queues per port) and PC-SIG SR-IOV implementation
  - IPv6 Offloading
  - Advanced Packet Filtering
  - VLAN support to allow creation of multiple VLAN segments

• Manageability Features
  - Preboot eXecution Environment (PXE) support
  - Simple Network Management Protocol (SNMP) and Remote
  - Network Monitoring (RMON) statistics counters
  - iSCSI remote boot

• OS Support
  - Windows® 7, 8, Server 2003, Server 2008, Server 2008 R2,
    Server 2012, Vista
  - RedHat EL, SuSe SLES
  - FreeBSD
  - VMWare

• Cables Support
  - SFP+ direct attached twin axial cables, up to 10 meters
  - Dual LC fiber-optic SR cables, up to 300 meters (optional
    SFP+ transceiver is required)

• Operating Conditions
  - Operating temperature: 0°C to 55°C (32°F to 131°F)

• Physical Dimensions (L x W)
  - Card PCB dimensions (without end brackets):
    12.32cm (4.85in) x 3.90cm (1.54in)

• Power Consumption
  - About 8W (typical)
