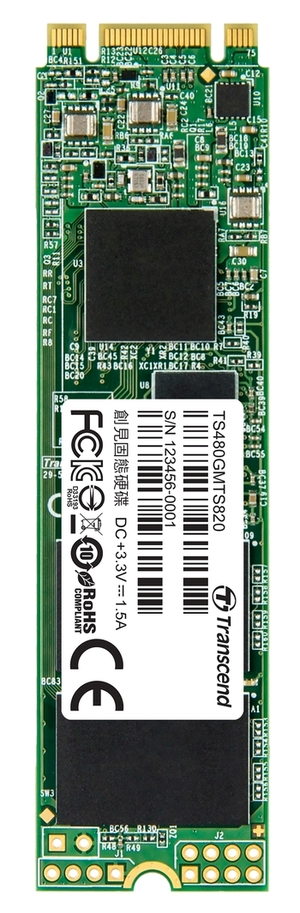

Transcend MTS820 480GB SSD M.2 2280 (SATA), TLC, 560R/510W

Utilizing the SATA III 6Gb/s interface, Transcend's ultracompact MTS820 M.2 SSD is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality flash chips and enhanced firmware algorithms, Transcend's MTS820 M.2 SSD delivers peerless reliability.


MTS820 Features:
Space-saving M.2 SATA form factor (80mm) for ultra-compact computing devices
SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use.
DDR3 DRAM cache
Supports S.M.A.R.T., TRIM and NCQ commands
Designed specifically for various low-profile applications
Compliant with M.2 standard in SATA specification
Advanced global wear-Leveling and block management for reliability
Advanced garbage collection
SSD Scope

Specifications:
Dimensions: 80.0mm × 22.0mm × 3.5mm (3.15" x 0.87" x 0.14")
Weight: 9g (0.32 oz)
Storage Media: TLC NAND Flash memory
Operating Voltage: DC 3.3V±5%
Operating Temperature: 0°C(32°F) ~ 70°C(158°F)
Read Speed (Max.): 560 MB/s
Write Speed (Max.): 510 MB/s
Terabytes Written (Max.): 400 TB
Certificates: CE, FCC, BSMI
Warranty: Three-year Limited Warranty (The 3 years warranty does not apply when SSD Scope's wear-out indicator shows 0% within 3 years.)

Note: Speed may vary due to host hardware, software and usage.

System Requirements:
Desktop or notebook computer with M.2 interface (a SATA 6Gb/s port is needed for best performance), and one of the following operating systems:
Windows 7
Windows 8
Windows 8.1
Windows 10
Linux Kernel 2.6.31 or later
