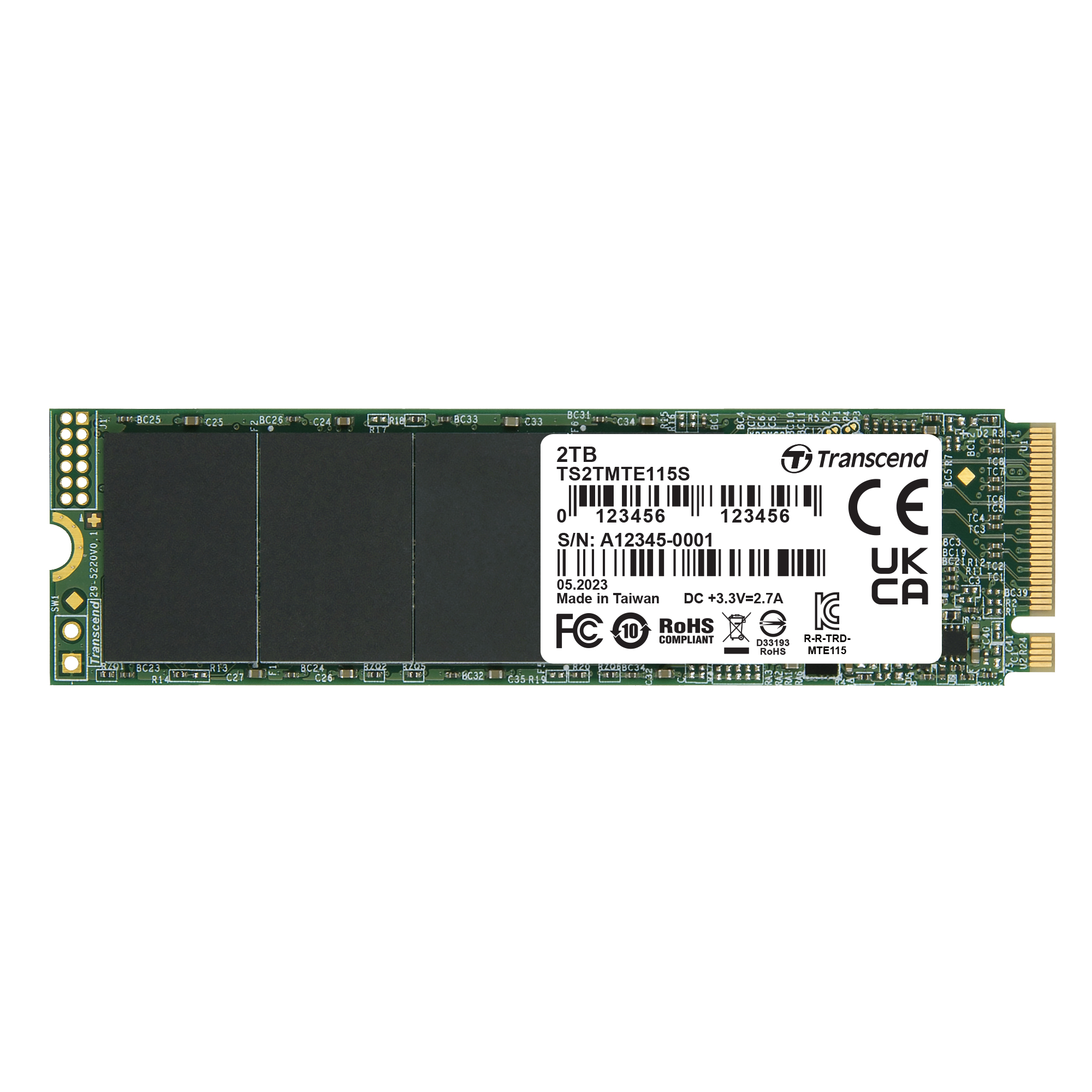

Transcend TS250GMTE115S - 2TB SSD M.2 2280 (PCIe 3.0), TLC

Appearance
Dimensions Single-sided: 80 mm x 22 mm x 2.23 mm (3.15" x 0.87" x 0.09")
Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 8 g (0.28 oz)
Type
M.2 2280
Interface
Bus Interface
NVMe PCIe Gen3 x4
Storage
Flash Type
3D NAND flash
Capacity
2 TB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
2TB up to 3,200/1,900 MB/s
4K Random Read/Write (IOmeter)
2TB up to 200,000/250,000 IOPS
Terabytes Written (TBW)
2TB 800 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.2 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate
CE/FCC/BSMI/KC/RCM/UKCA
Warranty
Five-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.
