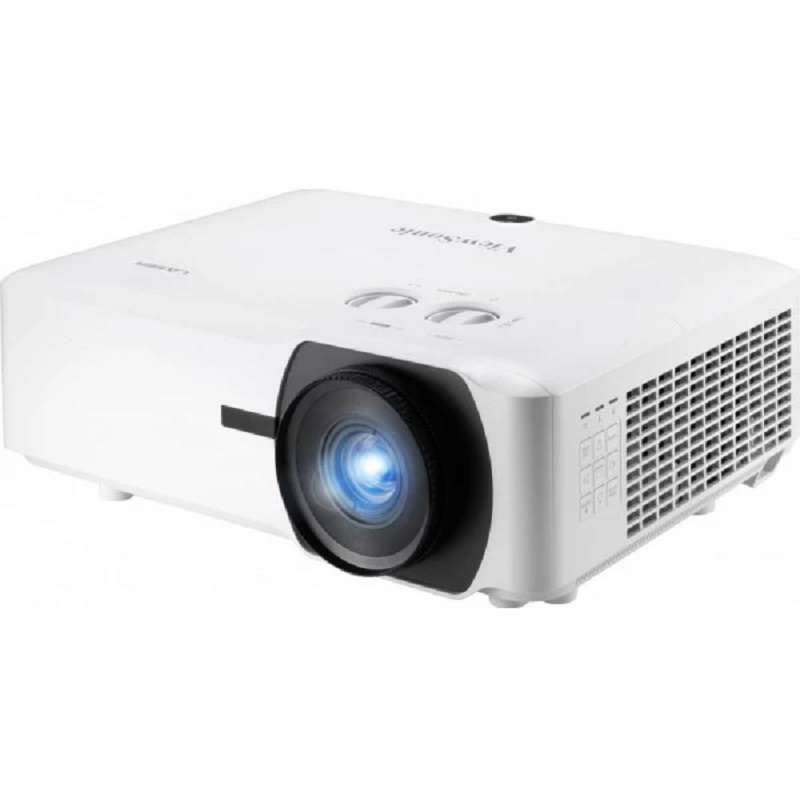

Viewsonic LS920WU

6,000 ANSI Lumens WUXGA Laser to deliver bright images up to 300" in size
2nd generation Laser Phosphor technology with a 20,000-hour lifespan
Wide H/V lens shift and 1.6x optical zoom for flexible installation
Creativity supported by 360° projection & portrait mode
Dual HDMI 2.0b supporting 4K HDR/HLG content
Cost-effective compact size and built-in HDBaseT

OVERVIEW
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.

SPECIFICATIONS

Vendor
Vendor: Qisda
Specification
Native Resolution: 1920x1200
DMD Type: DC3
Brightness: 6000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lamp Watt: Nichia 74W x2
Lens: F=1.81-2.1, f=14.3-22.9mm
Projection Offset: 0%
Throw Ratio: 1.36-2.18
Optical Zoom: 1.6X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.88-14.09m (100"@2.93m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +50%, -50%
Lens Shift H. Range: +23%, -23%
Audible Noise (Normal): 36dB
Audible Noise (Eco) : 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2 (HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
12V Trigger (3.5mm): 1
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1 (share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
Power Consumption: Normal: 450W Standby: <0.5W
Operating Temperature: 0~40?
Carton: Brown
Net Weight: 6.5
Gross Weight: 9
Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
Packing Dimensions: 515x490x276mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power Cord: 1
VGA Cable: 1
Remote Control: 1 (w/ laser pointer)
QSG: Yes
Warranty Card: Yes (CN Only)
Optional Accessory
Wall/Ceiling Mount: PJ-WMK-007
