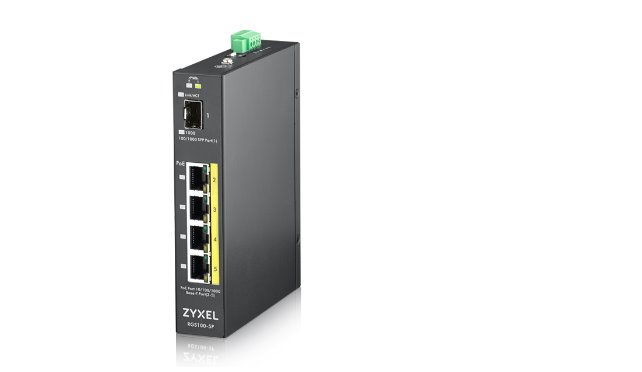

ZyXEL RGS100-5P

5-port Gigabit switch: 4x GbE + 1x SFP, PoE (802.3at, 30W), Power budget 120W, DIN rail/Wall mount, IP30, operation temperature: from -40 to +75°C, dual power 12-58V DC

Rugged and reliable design for harsh environments
Zyxel’s newest rugged PoE switch RGS100-5P is designed with ruggedized concept to meet stringent outdoor and harsh network deployment scenario. The wide-ranging operating temperature from -40°C to 70°C enables RGS100-5P operates with reliability in harsh environment. Also, the IP30 standard metal mechanism and fanless design allow RGS100-5P withstand dusty environment.

Easy extendibility and flexible installation
The RGS100-5P comes with four Gigabit PoE+ ports to accommodate power-hungry devices with ease and one Gigabit SFP fiber uplink which can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility. To adopt different deployments, the RGS100-5P can be installed on either a DIN rail or wall mount for efficient use of cabinet space.

High availability
Equipped with dual DC power inputs, the RGS100-5P is capable of high-availability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

RGS100-5P
5-port GbE Unmanaged PoE Switch
Switch class
Unmanaged
Port Density

Total port count
5
   100/1000 Mbps PoE
4
   Gigabit SFP
1
Performance

Switching capacity (Gbps)
10
Forwarding rate (Mpps)
7.44
Packet buffer (byte)
0.25 M
MAC address table
2 K
Jumbo frame (byte)
9 K
Power

Input
Dual power input 12V~58VDC
Max. power consumption (watt)
125
Total PoE power budget (watt)
120
Physical Specifications

Item
Dimensions (WxDxH)(mm/in.): 29.1 x 107.3 x 139/1.15 x 4.22 x 5.47
Weight (kg/lb.): 0.5/1.1
Packing
Dimensions (WxDxH)(mm/in.): 70 x 177.8 x 205/2.76 x 7 x 8.07
Weight (kg/lb.): 0.7/1.54
Included accessories
Wall mount kit
DIN-rail mounting kit
Green Feature

Fanless
Yes
Environmental Specifications

Operating environment
Temperature : -40°C to 75°C/-40°F to 167°F
Temperature : 5% to 95% (non-condensing)
Storage environment
Temperature : -40°C to 85°C/-40°F to 185°F
Temperature : 5% to 90% (non-condensing)
MTBF (hr)
568,430
Heat dissipation (BTU/hr)
426.25
Acoustic noise (dBA)
0
