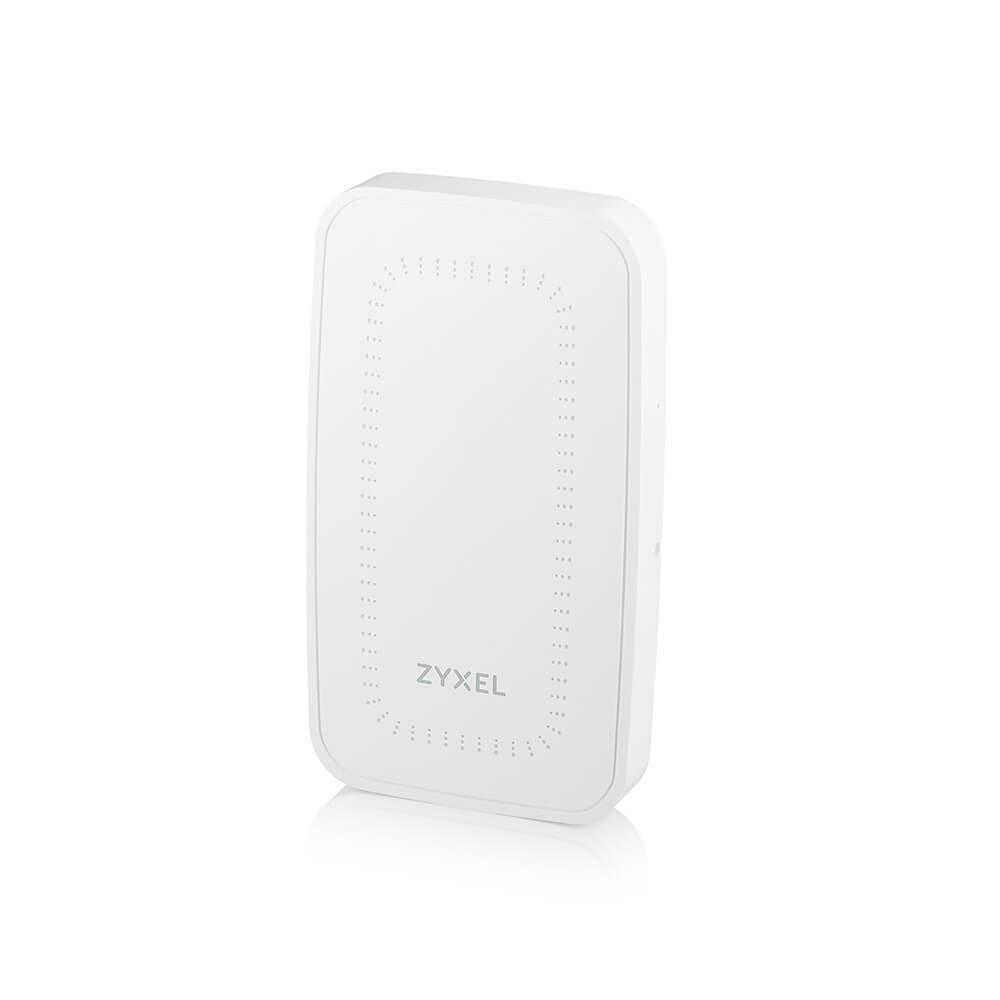

Zyxel WAX300H

Wireless
Standard

   IEEE802.11 ax/ac/n/g/b/a

MIMO

   MU-MIMO

Wireless speed

   2.4GHz: 575 Mbps
   5GHz: 2400 Mbps

Frequency band

   2.4 GHz:
   USA (FCC): 2.412 to 2.462 GHz
   Europe (ETSI): 2.412 to 2.472 GHz
   5 GHz:
   USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
   European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

   20-, 40- ,80- and 160-MHz

Conducted typical transmit output power*1

   US (2.4GHz/5GHz):
   23/23 dBm
   EU (2.4GHz/5GHz):
   19/23 dBm

RF Design
Antenna type

   Internal Antenna

Antenna gain

   2.4 GHz: 3 dBi, 2X2:2SS
   5 GHz: 4 dBi, 2x2:2SS

Minimum receive sensitivity

   Min. Rx sensitivity up to -99 dBm

WLAN Feature
Band steering, WDS/Mesh*2, DCS, Advanced Cellular Coexistence

   Yes

Fast roaming

   Pre-authentication, PMK caching and 802.11r/k/v

Load balancing

   No

Security
Encryption

   WPA
   WPA2
   WPA3

Authentication

   IEEE 802.1X
   RADIUS anthentication

Access management

   L2-isolation
   MAC filtering
   Rogue AP detection

Networking
IPv6, VLANs, WMM, U-APSD

   Yes

Management
Operating mode

   Nebula cloud managed
   Controller-managed
   Standalone

ZON Utility

   Discovery of Zyxel switches, APs and gateways
   Centralized and batch configurations:
   IP configuration
   IP renew
   Device reboot
   Device locating
   Web GUI access
   Firmware upgrade
   Password configuration

Web UI/CLI

   Yes

SNMP

   No

Physical Specifications
Item

   Dimensions (WxDxH)(mm/in.) - 173 x 97 x 29 / 6.81 x 3.82 x 1.14
   Weight (g/lb.) - 310/0.68

Packing

   Dimensions (WxDxH)(mm/in.) - 195 x 120 x 53 / 7.68 x 4.72 x 2.09

Weight (g/lb.) - 483/1.06
Included accessories

   Multi-purpose mounting bracket with screws

Optional accessories (Sold separately)

   WAC500H-DMNT10F: Desktop mount Kit (10 sets)

MTBF (hr)

   750,816

Physical Interfaces
Ethernet port

   1x 10/100/1000M uplink
   3x 10/100/1000M downlink(including one PoE PSE)

Power

   PoE (802.3at): power draw 19 W(include 5W for PoE PSE)

PoE modes

   IEEE802.3af: Not supported
   IEEE802.3at: Unrestricted
   IEEE802.3bt: -

Environmental Specifications
Operating

   Temperature - 0°C to 50°C/32°F to 122°F
   Humidity - 10% to 90% (non-condensing)

Storage

   Temperature - -40°C to 70°C/-40°F to 158°F
   Humidity - 10% to 90% (non-condensing)

Certifications
Radio

   FCC Part 15C
   FCC Part 15E
   ETSI EN 300 328
   EN 301 893
   LP0002
   EN 60601-1-2

EMC

   FCC Part 15B
   EN 301 489-1
   EN 301 489-17
   EN55022
   EN55024
   EN61000-3-2/-3
   BSMI CNS13438

Safety

   EN 60950-1
   IEC 60950-1
   BSMI CNS14336-1
